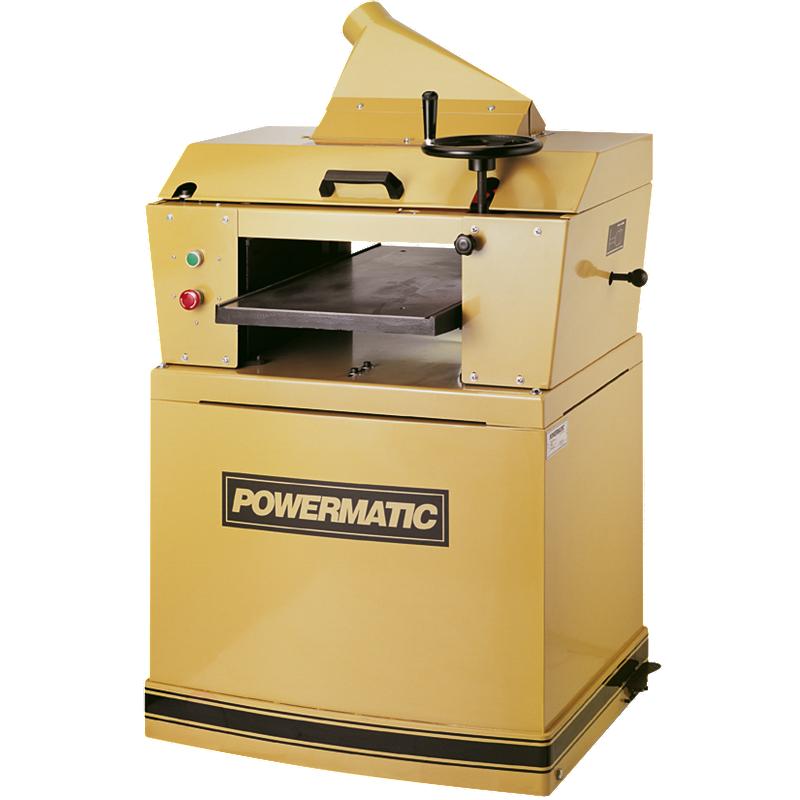

POWERMATIC ® - PM15 Planer/Molder

DetailsSpecificationsAccessoriesWarranty

Details
5HP motor powers through big jobs
15" planing capacity is wide enough to run double molding knife sets
Easy-to-read depth of cut scale with large handwheel for quick set ups
Two feed speeds provide maximum stock removal or a fine milled finish for decorative moldings
Feed rollers and cutterhead supported by full cast iron head assembly
Machine uses single or three piece molding knives, providing a wide selection of profiles
Hinged top for fast, easy tooling changes
Fully enclosed base cabinet with integrated casters for complete mobility
Cast iron table is supported by 4 lead screws and height is controlled by chain and sprocket for precise depth of cut
Standard Equipment:
Two-speed gearbox
Tool kit
Dust chute
Integrated casters
3 High speed steel planer knives
Knife setting gauge


Part Number			1120003
Working Width			15 "
Maximum Depth of Cut - Planing			1/8 "
Maximum Depth of Cut - Molding			¾ "
Maximum Planing Thickness			6 1/8 "
Minimum Planing Length			8 "
Cutterhead Diameter			2 7/8 "
Cutterhead Speed			4500 RPM
Cuts Per Minute			13500
Outfeed Roller Diameter			1½ "
Infeed Roller Diameter			1½ "
Feed Rate - Planing			10, 20 FPM
Feed Rate - Molding			10, 20 FPM
Table Size			27 1/2 x 15 1/8 "
Scale/Cursor			inches & millimeters
Number of Knives			3
Table Height Adjustment			1 Turn = 1/16"
Dust Port Outside Diameter			4 "
Dust Collection Minimum CFM Required			900 cu.ft/min
Motor Power			5 HP
Motor Voltage			230 V
Prewired Voltage			230 V
Motor Phase			1 Ph
Model Number			PM15
Brand			Powermatic
Overall Dimensions			28 x 34 x 51
Height			51 inch
Width			34 inch
Length			28 inch
Net Weight			423 pound

	Part #	Description
	2253082	Molding Guide System for PM15
	4570297	11/16" x 3" Chair Rail Molding
	4570470	11/16" x 4-5/8" Top Crown and Bed Molding
	4570471	11/16" x 4-5/8" Bottom Crown and Bed Molding
	4570480	11/16" x 4-1/4" Top Crown and Bed Molding
	4570481	11/16" x 4-1/4" Bottom Crown and Bed Molding
	4570490	11/16" x 3-5/8" Top Crown and Bed Molding
	4570491	11/16" x 3-5/8" Bottom Crown and Bed Molding
	4570500	11/16" x 3-1/2" Top Crown and Bed Molding
	4570501	11/16" x 3-1/2" Bottom Crown and Bed Molding
	4570510	11/16" x 3-1/4" Top Crown and Bed Molding
	4570511	11/16" x 3-1/4" Bottom Crown and Bed Molding
	4570530	11/16" x 2-5/8" Top Crown and Bed Molding
	4570540	11/16" x 2-1/4" Top Crown and Bed Molding
	4570541	11/16" x 2-1/4" Bottom Crown and Bed Molding
	4570930	3/4" x 3/4" Cove Molding
	4571630	11/16" x 1-3/8" Base Cap Molding
	4571800	Up To 2-5/8" Brick Molding
	4572120	11/16" x 2-1/2" Panel Molding
	4573060	11/16" x 2-1/4" Casing Molding
	4573510	11/16" x 2-1/2" Casing Molding
	4573560	11/16" x 2-1/4" Casing Molding
	4573610	11/16" x 2-1/2" Casing Molding
	4573660	11/16" x 2-1/4" Casing Molding
	4573900	11/16" x 2-5/8" Casing Molding
	4574202	2" x 7/8" Picture Frame Molding
	4574204	1-1/4" x 3/4" Picture Frame Molding
	4574211	2-3/8" x 3/4" Picture Frame Molding
	4574217	3-9/16" x 1-1/8" Picture Frame Molding
	4574223	7/8" x 1-7/8" Picture Frame Molding
	4574440	11/16" x 3-1/2" Casing and Base Molding
	4575100	1" Back Relief Knife (Sold Per Set of 3 Knives)
	4575150	1-1/2" Back Relief Knife (Sold Per Set of 3 Knives)
	4575175	1-3/4" Back Relief Knife (Sold Per Set of 3 Knives)
	4575185	1-1/4" Back Relief Knife (Sold Per Set of 3 Knives)
	4575200	2" Back Relief Knife (Sold Per Set of 3 Knives)
	4575388	5/8" To 1" Thick, Paneling "T" and "G" Molding
	4575391	5/8" To 1" Wedge, "T" and "G" Molding
	4576020	11/16" x 3-1/2" Casing and Base Molding
	4576420	11/16" x 3-1/2" Casing and Base Molding
	4577020	11/16" x 3-1/2" Casing and Base Molding
	4579260	1/2" x 1-3/8" Stop Molding
	6296190	Model PM15, Replacement Planer Knives (Set of 3)
