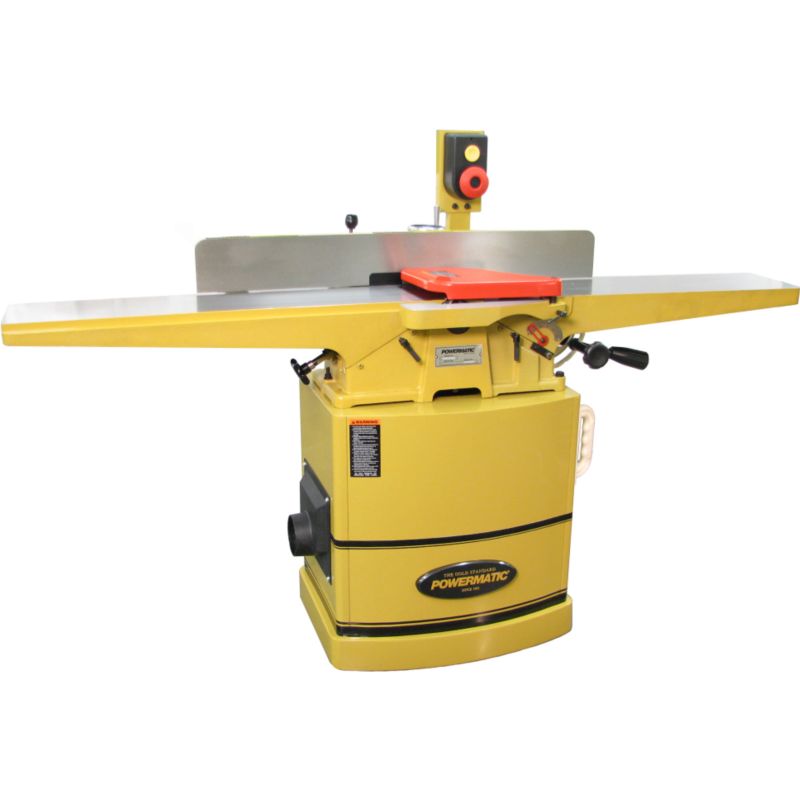

60C 8" Jointer, 2HP 1PH 230V
|
Stock Number:
1610084K
This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
|
|
DetailsSpecificationsWarranty
|
Details
|
|
n.a.
|
|
Extra long tables are mounted on dovetailed ways, for extended workpiece support
|
|
Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
|
|
High mount switch for operator convenience
|
|
Handwheel operated worm gear system for smooth fence tilting
|
|
Magnetic push blocks can be stored on the machine within constant reach
|
|
Non-mar fence insert protects table surface
|
|
Large extension rest on infeed table for rabbeting
|
|
High-speed heat-treated steel knives
|
| | | | | |
| Part Number |
|
| 1610084K |
|
| Cutting Capacity (W x D) |
|
| 8 x 1/2 " |
|
| Cutterhead Speed |
|
| 7000 RPM |
|
| Cuts Per Minute |
|
| 21000 |
|
| Cutterhead Diameter |
|
| 3 " |
|
| Number of Knives (Helical/Standard) |
|
| 3 |
|
| Standard Knife Size (L x W x T) |
|
| 8 x 11/16 x 1/8 " |
|
| Rabbeting Capacity |
|
| ½ " |
|
| Rabbeting Ledge |
|
| 1/2 " |
|
| Table Height |
|
| 32 " |
|
| Table Size (L x W) |
|
| 73 x 8 1/2 " |
|
| Infeed Table Length |
|
| 35¼ " |
|
| Outfeed Table Length |
|
| 35½ " |
|
| Fence Size (L x H) |
|
| 38 x 4 3/4 " |
|
| Fence Tilts |
|
| 45 ° forward, 45 ° backward |
|
| Fence Positive Stops |
|
| 45 ° forward, 45 ° and 90 ° backward |
|
| Dust Port Outside Diameter |
|
| 4 " |
|
| Motor Power |
|
| 2 HP |
|
| Motor Phase |
|
| 1 Ph |
|
| Motor Voltage |
|
| 230 V |
|
| Motor Current |
|
| 9 A |
|
| Web Description |
|
| 60C 8" Jointer, 2HP 1PH 230V |
|
| Model Number |
|
| 60C |
|
| Brand |
|
| Powermatic |
|
| Overall Dimensions |
|
| 25 x 73 x 46 |
|
| Height |
|
| 46 inch |
|
| Width |
|
| 73 inch |
|
| Length |
|
| 25 inch |
|
| Net Weight |
|
| 490 pound |
|
 | WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.For more informaton click HERE |
|
|
|
|
|
|
