701 PM Benchtop Deluxe Mortiser

Stock Number: 1791310

The new POWERMATIC® PM701 Benchtop Mortiser features an in-line depth stop which allows the user to stop at preset depths without racking the mortiser bit to the base. Its heavy-duty reversible handle is so versatile that it can be changed from one side to the other quickly and easily and requires no tools to do so. The stock hold down features a specially designed double lock system. One locks from the side, the other locks from the top, to completely eliminate any slippage when removing the chisel from the work piece. This hold-down is also reversible to allow stock from 0 to 5" thick to be captured underneath it. The new POWERMATIC® 701 Benchtop Mortiser has a quick-action cam lock that will quickly lock the fence into position with one 90° movement. This lock also features lock nuts, so once set they will not have to be continually adjusted. Set-up has never been easier or more precise. The new POWERMATIC® 701 Benchtop Mortiser features an integrated bit and chisel spacer system. These two spacers are used to accurately and quickly account for the space needed between the bit and chisel during set-up. Large work surfaces in the table and fence allow for more stability and accurate cuts. The new mortiser also includes a large hinged chuck door with magnetic catch. This unique element allows the user to easily access the drill chuck with the standard 4" chuck key to lock the bit in place. In addition, its rack and pinion allow for simple and quick fence adjustments.

WhitePaper Description

1791310 Brochure

1791310 Whitepaper

1791310 Manual

1791310 Online Demo

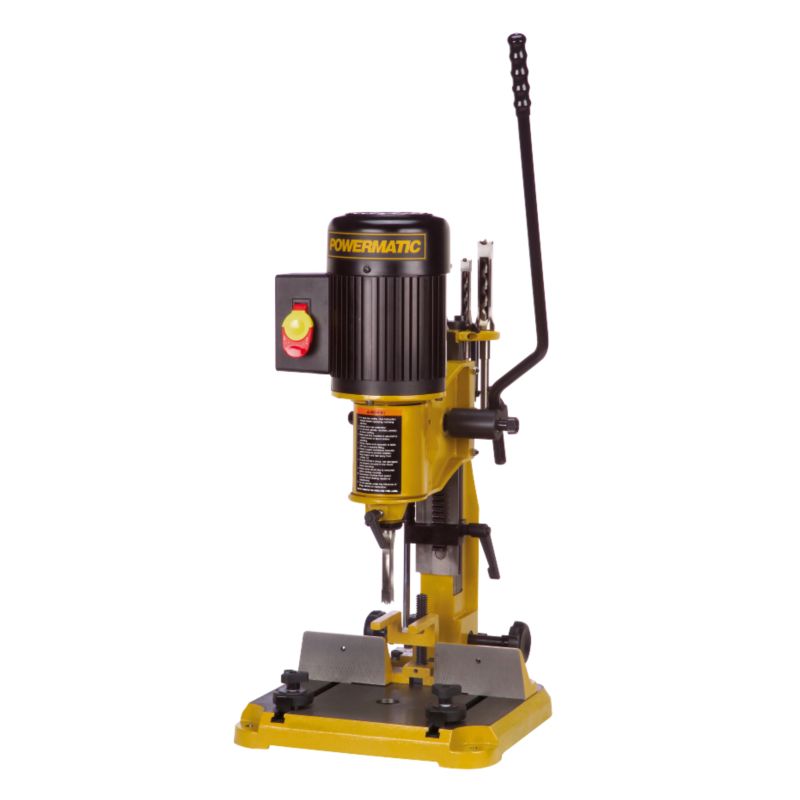

POWERMATIC - 1791310 (Click to Zoom)

DetailsSpecificationsAccessoriesWarranty

Details
In-line depth stop allows stopping at pre-set depths without racking the bit to the base
Heavy-duty reversible handle can be installed to either side of the head without tools
Stock hold-down with a double lock system, top and side, to eliminate slippage of workpiece
Quick action cam lock will quickly lock fence in position with one 90° movement
2 integrated bit and chisel spacers for quick set up
Large work surfaces on both table and fence for greater stability and accuracy
Large, hinged chuck door with magnetic catch for rapid access to the chuck
Rack and pinion design for simple fence adjustments
Standard Equipment:
Integrated chisel and tool holder with sharpening stone
1/2" drill chuck with 4" chuck key
Removable safety switch key


Part Number			1791310
Spindle Speed			1725 RPM
Chuck Size			½ "
Chisel Capacity			n.a.
Chisel Shank Capacity			3/4 "
Head Stroke			5½ "
Chisel Center to Fence			4 3/8 "
Under Hold-Down			5 "
Fence Size (L x H)			2 5/8 x 12 1/2 "
Base Size			16 5/16 x 13 3/4 "
Bushing Size			5/8, 3/4 "
Table Size (L x W)			11 x 13 "
Table Tilt			n.a.
Motor Power			¾ HP
Motor Voltage			115 / 230 V
Prewired Voltage			115 V
Motor Phase			1 Ph
Motor Current			8 / 4 A
Spindle Taper			n.a.
Model Number			PM701
Brand			Powermatic
Overall Dimensions			24.2 x 19.2 x 17.4
Height			17.4 inch
Width			19.2 inch
Length			24.2 inch
Net Weight			93 pound

	Part #	Description
	1791091	Premium Mortise Chisel & Bit 1/4"
	1791092	Premium Mortise Chisel & Bit 5/16"
	1791093	Premium Mortise Chisel & Bit 3/8"
	1791094	Premium Mortise Chisel & Bit 1/2"
	1791095	Premium Mortise Chisel & Bit 3/4"
	1791096	Premium Mortise Chisel & Bits, Set of 4
	1791312	701-RB:2" Riser Block for POWERMATIC 701 Mortiser
