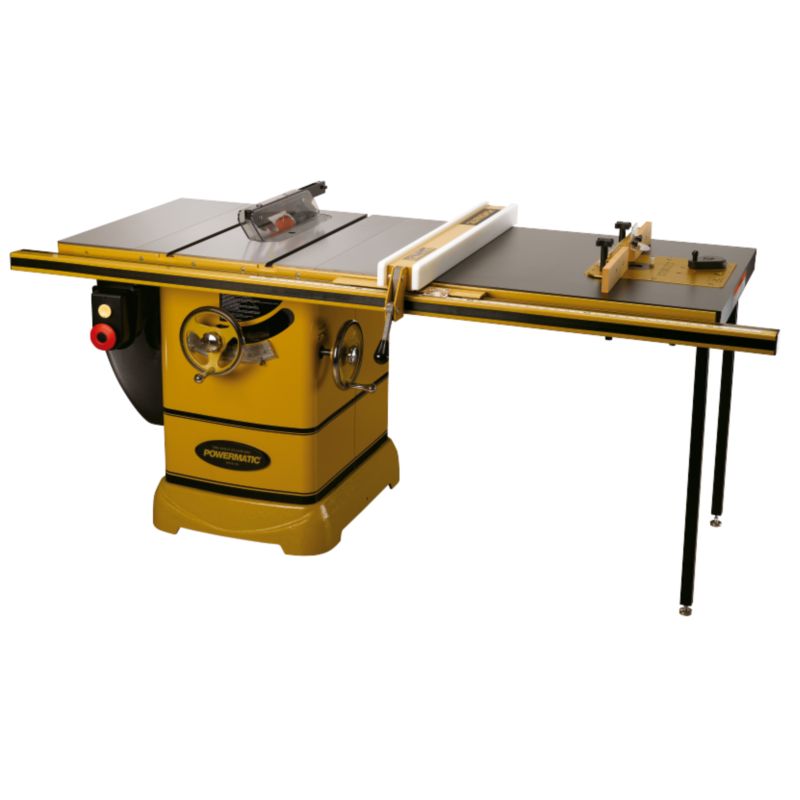

POWERMATIC ® - PM2000, 3HP 1PH Table Saw, w/ 50 Accu-Fence System & Rout-R-Lift

DetailsSpecificationsAccessoriesWarranty

Details
Quick release riving knife greatly reduces binding/kickback risk
Built-in retractable caster system (patent pending) for immediate shop mobility
Push button arbor lock (patent pending) for rapid blade change
Poly-V drive belt system delivers efficient, quiet operation
Wide stance heavy-duty trunnion for stability and smooth blade positioning
Adjustable angle indicators (patent pending) on the blade bevel scale for repeatable bevel cuts
Industrial-duty Accu-Fence® System ensures accurate cuts
Enclosed cabinet with cast iron base for rigidity
Heavy-duty deluxe micro-adjust miter gauge with aluminum extruded 13" extension fence, for good workpiece support and fine angle adjustments.
Precision ground, high luster, cast iron table top with front and rear edge bevel to prevent catching of miter gauge on table edge
Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
Independent leaf blade guard and anti-kickback pawls promote safe cutting
Industrial magnetic controls, and jumbo stop switch is reachable with the knee
Built-in 4" port for dust collection
Standard Equipment:
TEFC Motor with magnetic controls
Standard left and right cast iron extension wings
Accu-Fence® System with 50" to the right cutting capacity
Melamine-surface extension table, legs and Rout-R-Lift®
Arbor wrench
Motor cover
Blade, power cord plug not included


Part Number			1792001K
Blade Diameter			10 "
Arbor Diameter			5/8 "
Arbor Speed			4300 RPM
Maximum Depth of Cut			3 1/8 "
Maximum Depth of Cut at 45 Degrees			2 1/8 "
Maximum Rip Right of Blade			50 "
Maximum Rip Left of Blade			13½ "
Table in Front of Saw Blade at Maximum Depth of Cut			11¼ "
Maximum Width of Dado			13/16 "
Maximum Diameter of Dado			8 "
Table Type			Cast Iron
Table Height			34½ "
Table Size with Standard Extension (L x W)			42 x 30 1/2 "
Table Size without Extension (L x W)			22 x 30 1/2 "
Rapid Wing Extension			n.a.
Table Size without Wings (L x W)			22 x 30 1/2 "
Dust Port Outside Diameter			4 "
Dust Collection Minimum CFM Required			350 cu.ft/min
Dust Collection Adapter Port			n.a.
Leg Stand with Steel Storage			n.a.
Miter Gauge Type			Deluxe, micro adjustable with Aluminum extruded fence
Motor Power			3 HP
Motor Voltage			230 V
Motor Current			13 A
Motor Phase			1 Ph
Model Number			PM2000
Brand			Powermatic
Overall Dimensions			85 x 37 x 39
Height			39 inch
Width			37 inch
Length			85 inch
Net Weight			694 pound

	Part #	Description
	1791786	PM2000NCI: No Clearance Insert for PM2000
	1791787	PM2000LPR: Low Profile Riving Knife for PM2000
	1791788	PM2000DI: Dado Insert for PM2000
	1791791	PM2000-TKRK: .079" Riving Knife
	1791792	PM2000-TKLPRK: .079" Low Profile RK
	2653039Z	PM 30" Rip Rail Set for 66 & PM2000
	6827040	Table Board, 30-1/2" x 36" for PM2000
	6827042	Table Board, 30-1/2" x 24" for PM2000
	6827043	Table Board with Hole for Rout-R-Lift, 30-1/2" x 24" for PM2000
