Product Details

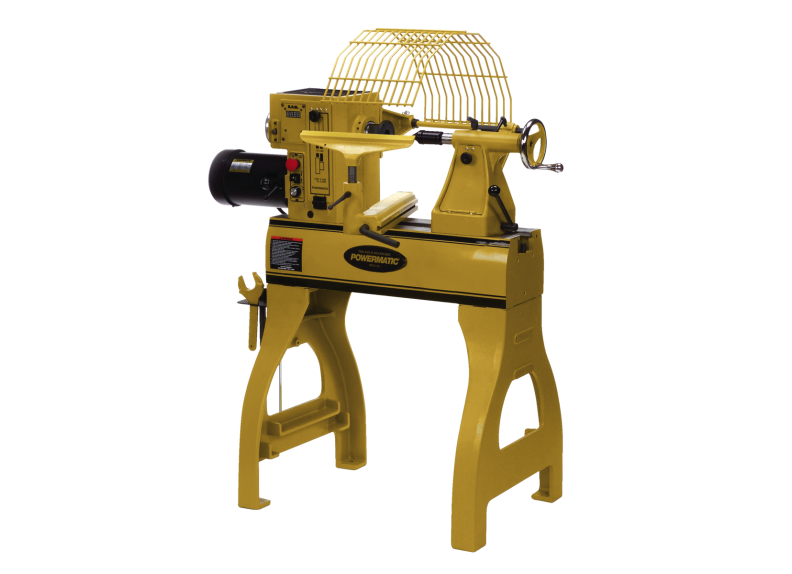

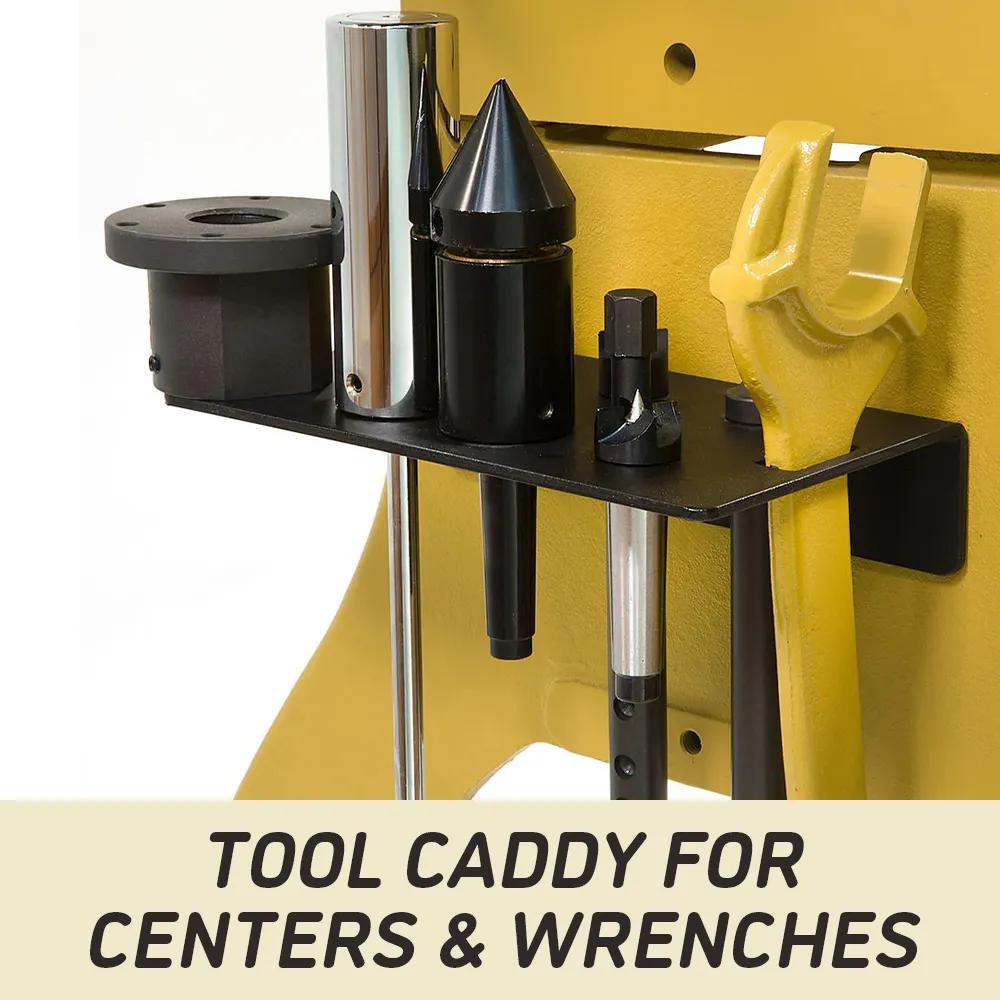

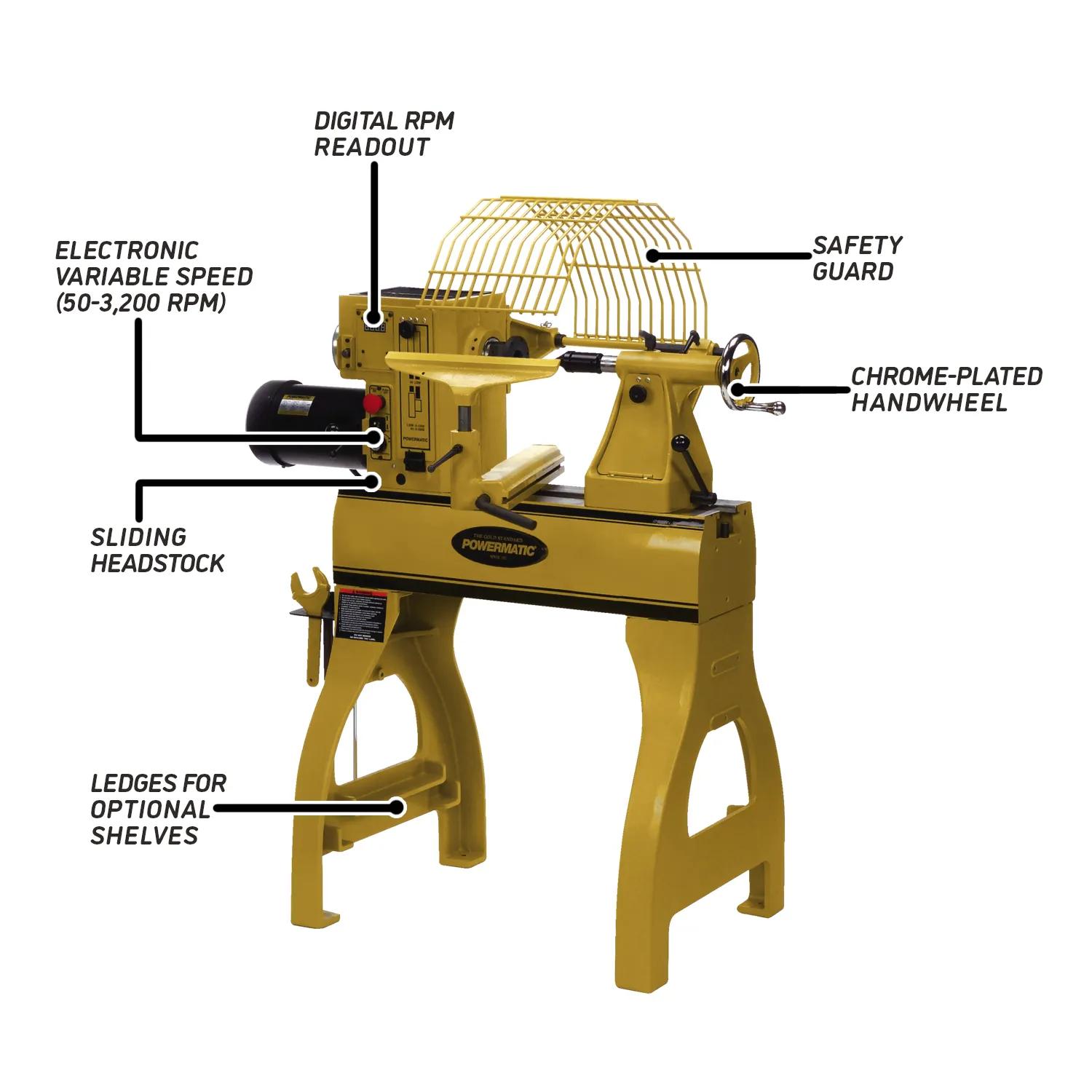

The Powermatic PM2020B woodworking lathe brings many of the features found on larger Powermatic lathes into a space-saving design. Powered by a 2 HP motor running on 220V single-phase input, with an onboard VFD inverter delivering three-phase output, this lathe is ideal for bowl turning and projects that benefit from a shorter bed. It includes a sliding headstock, electronic variable speed with high and low ranges, spindle locking, and a digital RPM readout. Additional refinements include built-in spindle indexing, a redesigned tailstock with internal storage, and a self-ejecting quill with laser-etched markings. With integrated tool storage and multiple mounting positions for optional extensions, the PM2020B offers versatility without sacrificing performance.
Features

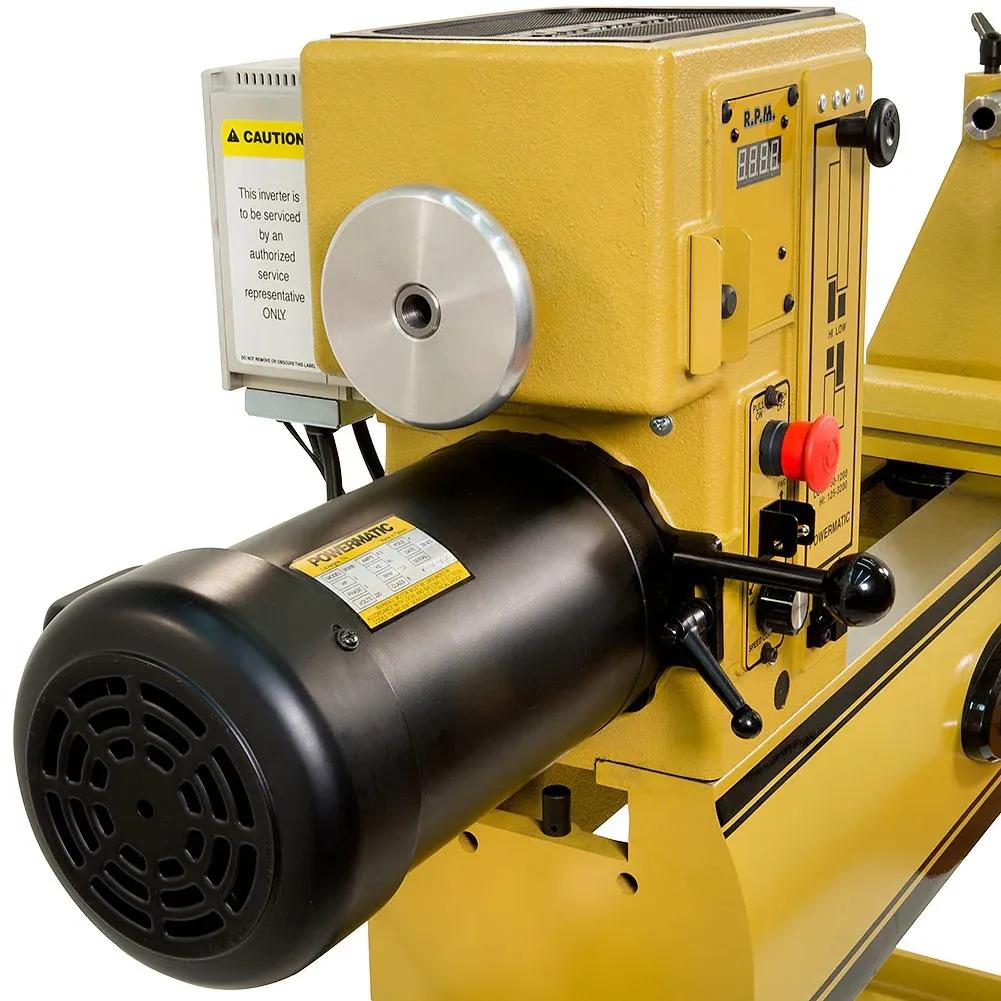

- 2 HP motor with onboard VFD: Runs on standard 220V single-phase power but delivers smooth three-phase output for consistent torque and precise speed control.

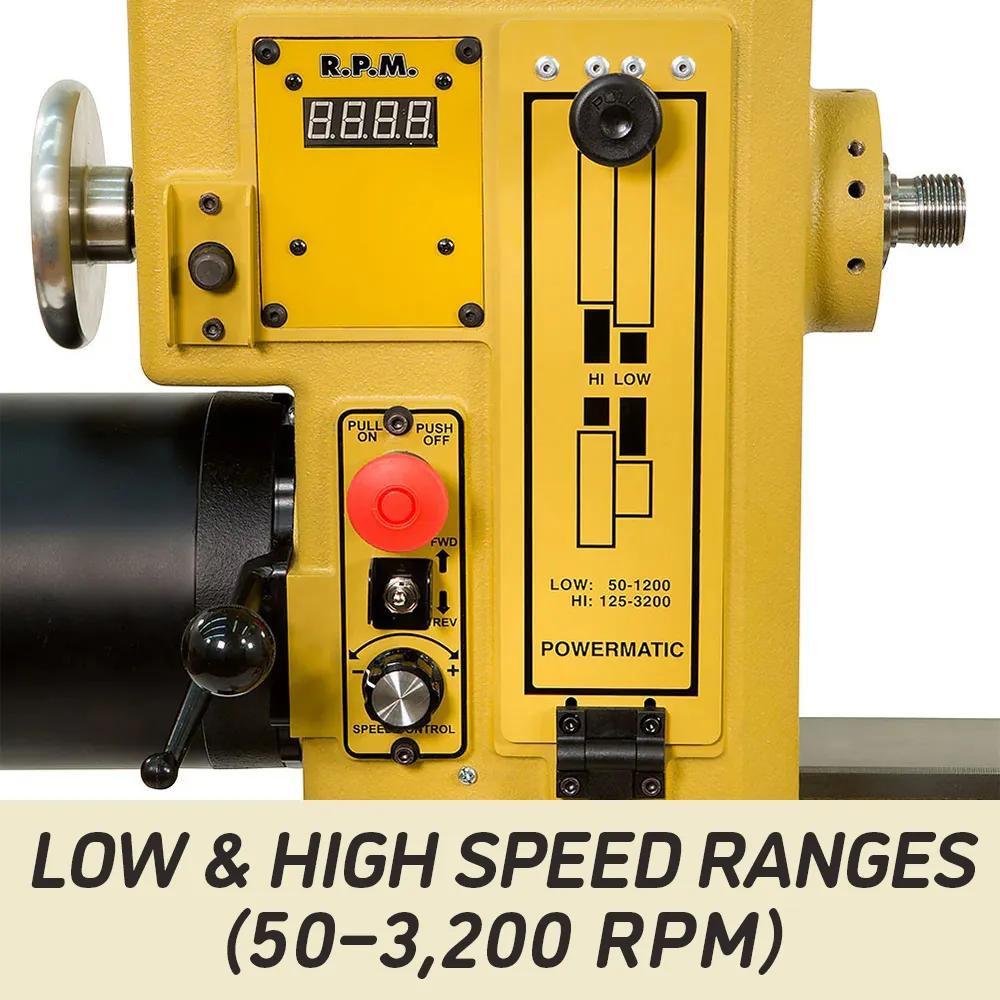

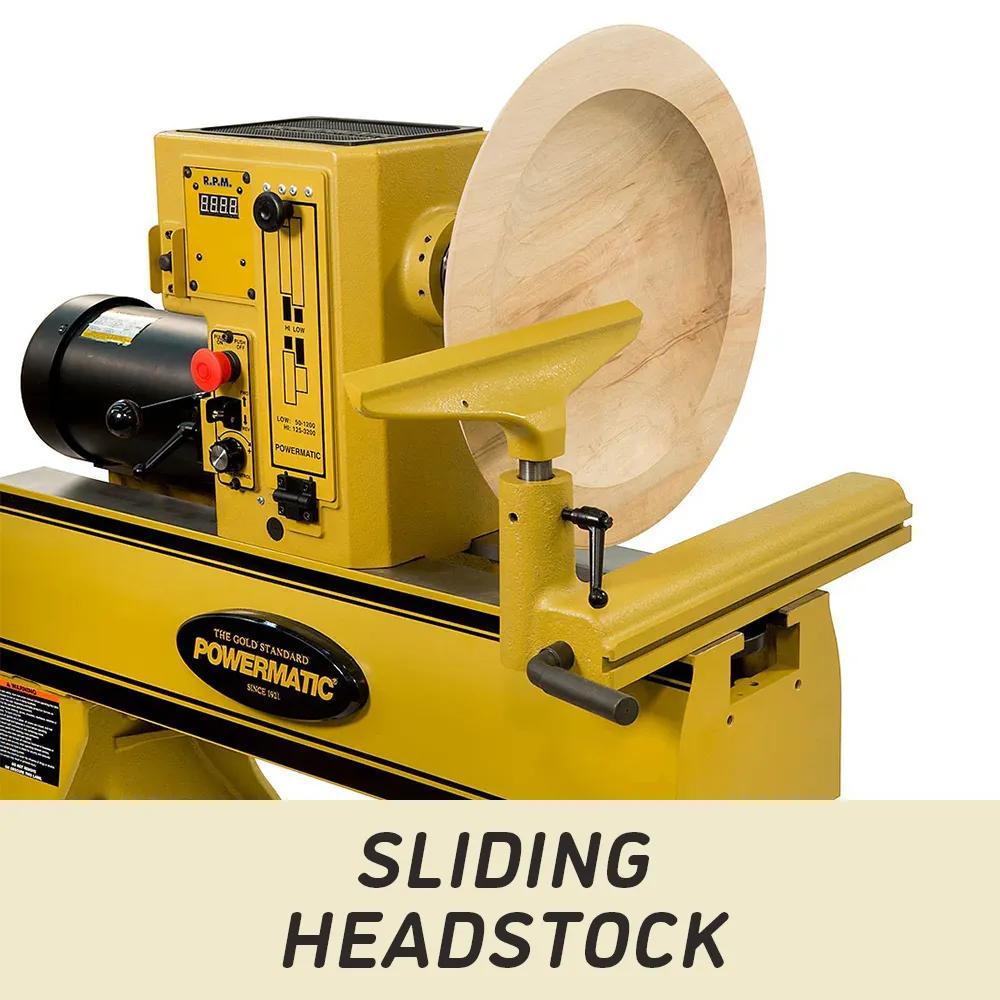

- Sliding headstock with electronic variable speed from 50 to 3,200 RPM supports controlled speed selection for roughing and finishing
- Digital RPM readout provides accurate, real-time spindle speed information for precise adjustments during turning
- Built-in spindle indexing supports repeatable layout work such as fluting, carving, or decorative detailing

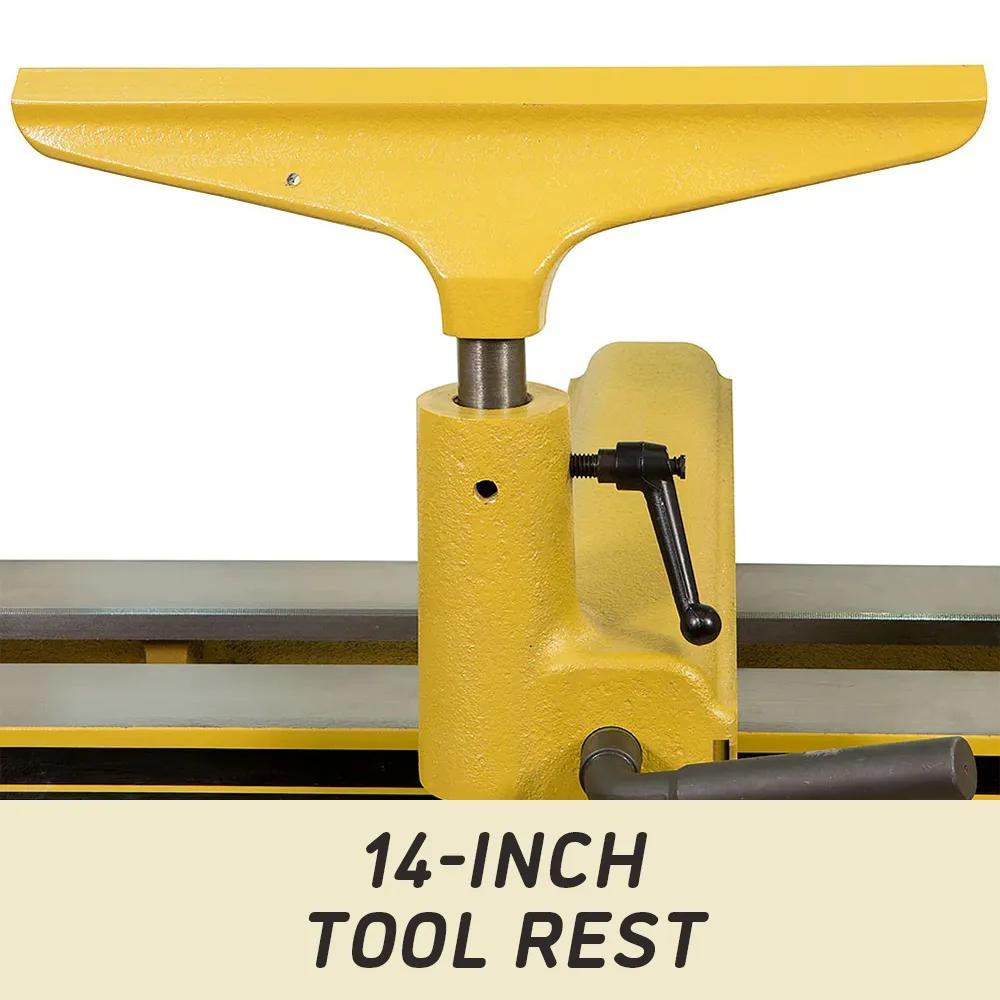

- Redesigned tool rest geometry allows smoother chisel movement along the rest for improved tool control
- Brass-tipped knockout bar concentrates force without damaging drive centers during spindle removal

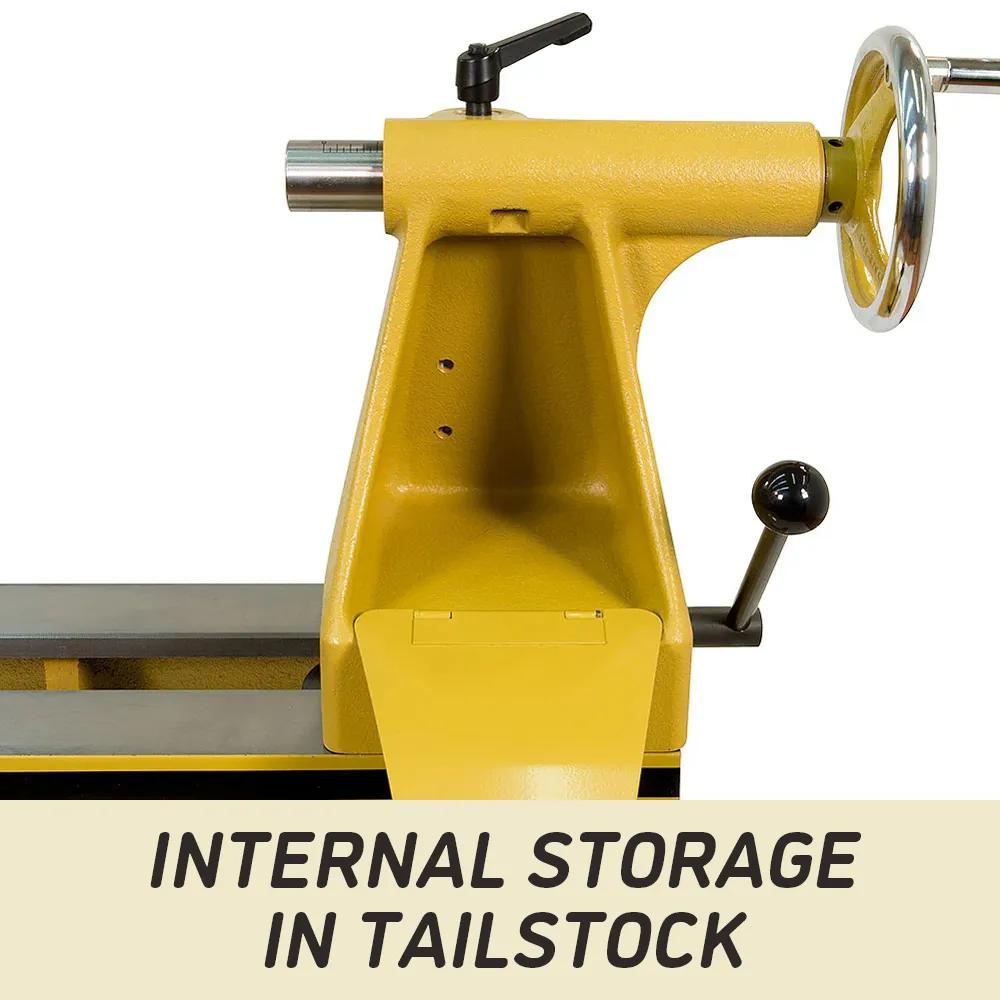

- Tailstock with internal storage keeps accessories organized and readily accessible during operation

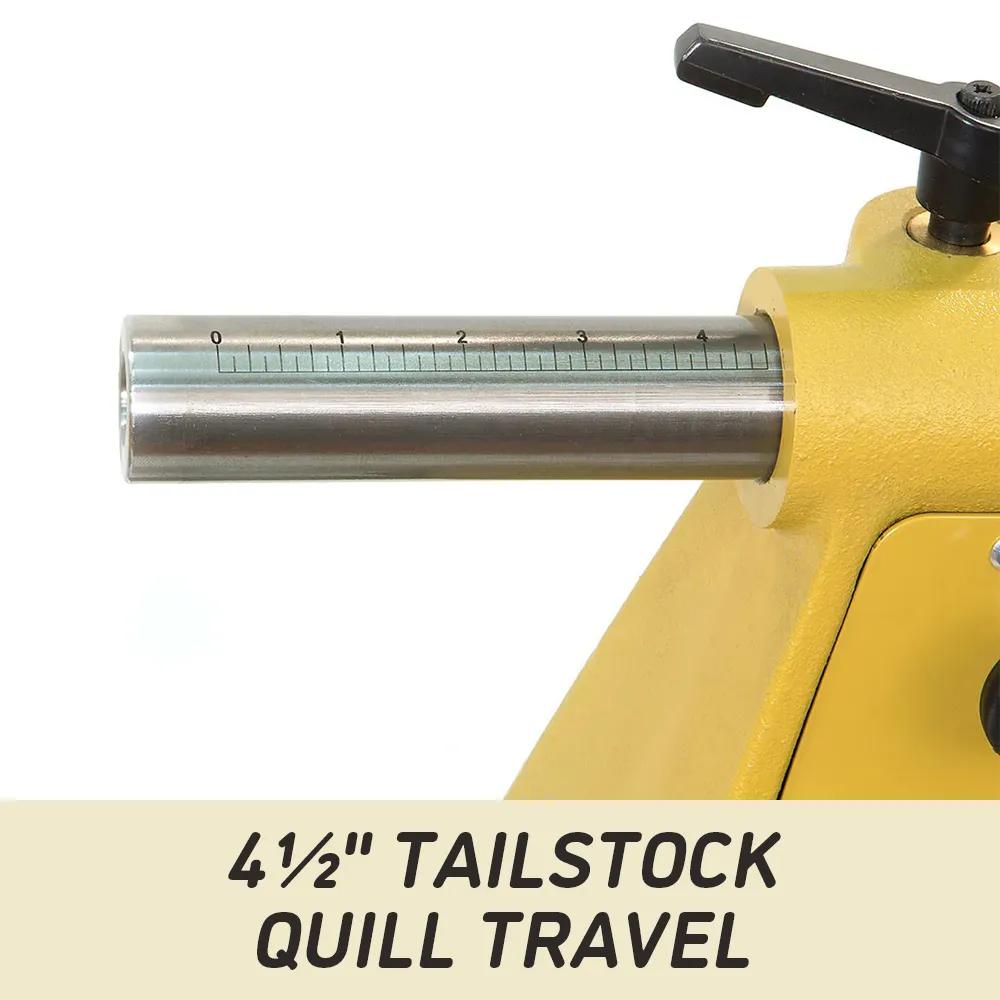

- Self-ejecting quill with laser-etched markings supports accurate depth control and repeatable setups

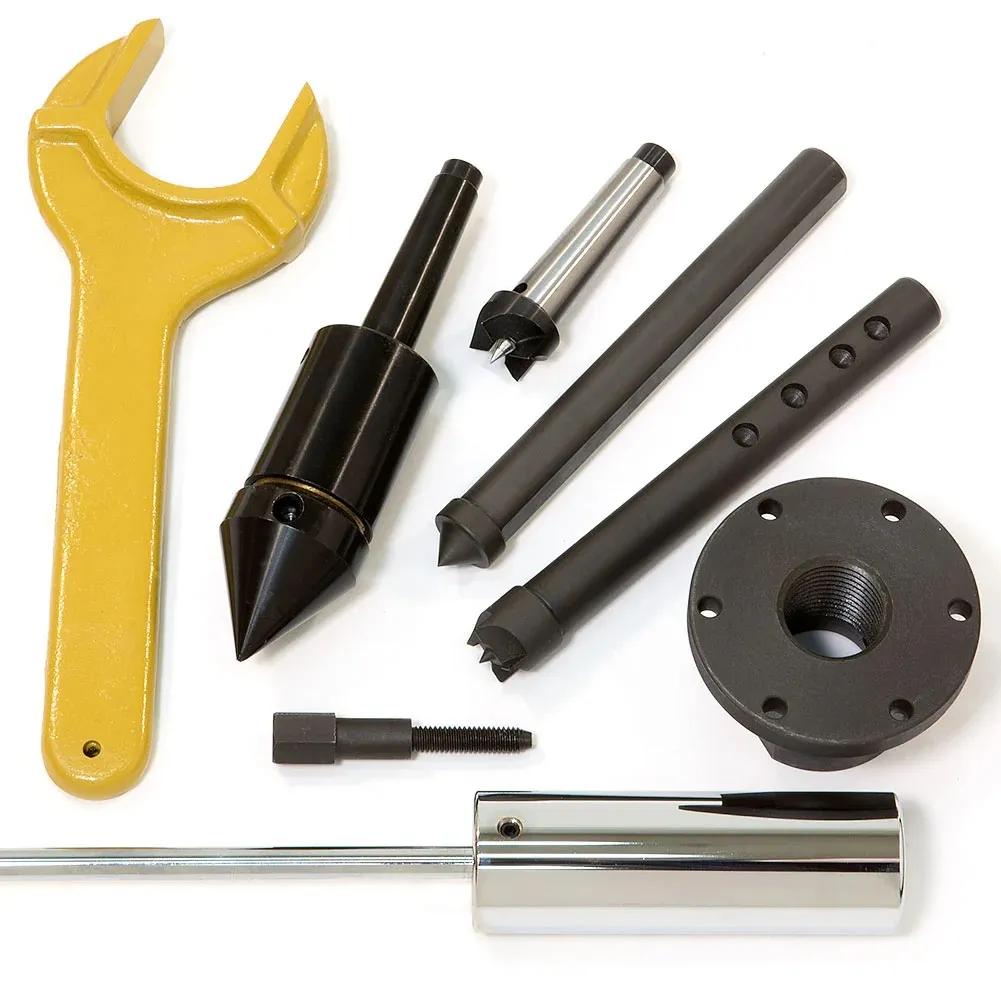

- Set of included dead centers allows visual comparison when holding spindles between centers
- Two-position mounting supports installation of an optional bed extension for added versatility
Specifications
- SKUPM9-1792020
- Distance Between Centers20 in.
- Gross Weight582
- Headstock MovementSliding
- Input Power220V Single Phase
- Model NumberPM2020
- Motor HP2
- Net weight530
- Number of Indexing Positions48
- Old Material Number1792020
- Prewired Voltage220
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT2
- Spindle Bore5/8 in.
- Spindle TaperMT2
- Style TypeFloor Standing
- Swing Over Bed20 in.
- UPC731325352597
- Warranty5 Year
