Product Details

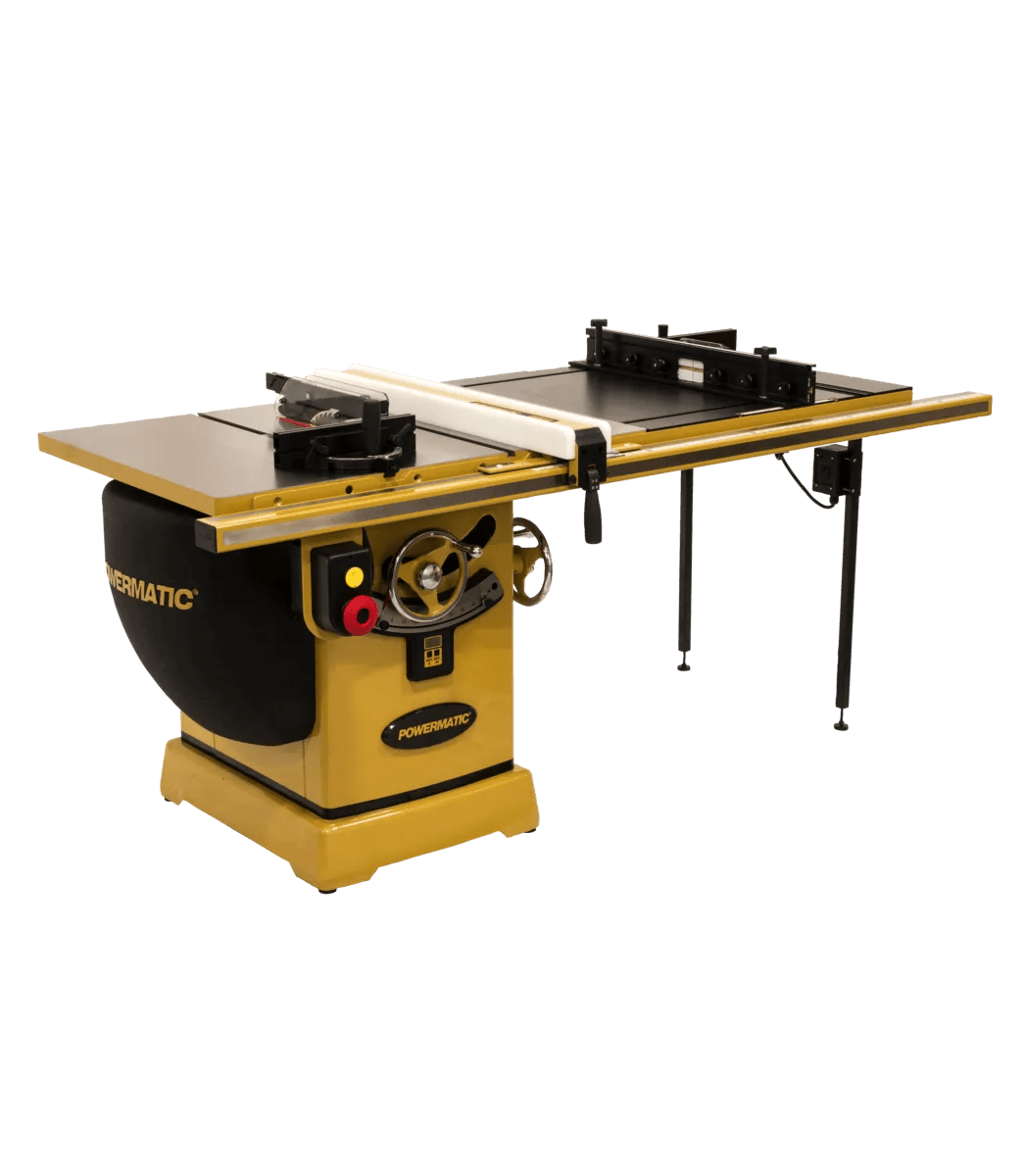

The award-winning PM2000B table saw sets a new standard for innovation with an array of patented features and massive body design. The cast iron tables are oversized, and the redesigned arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout, as well as adjustable angle indicators for repetitive bevel cuts.

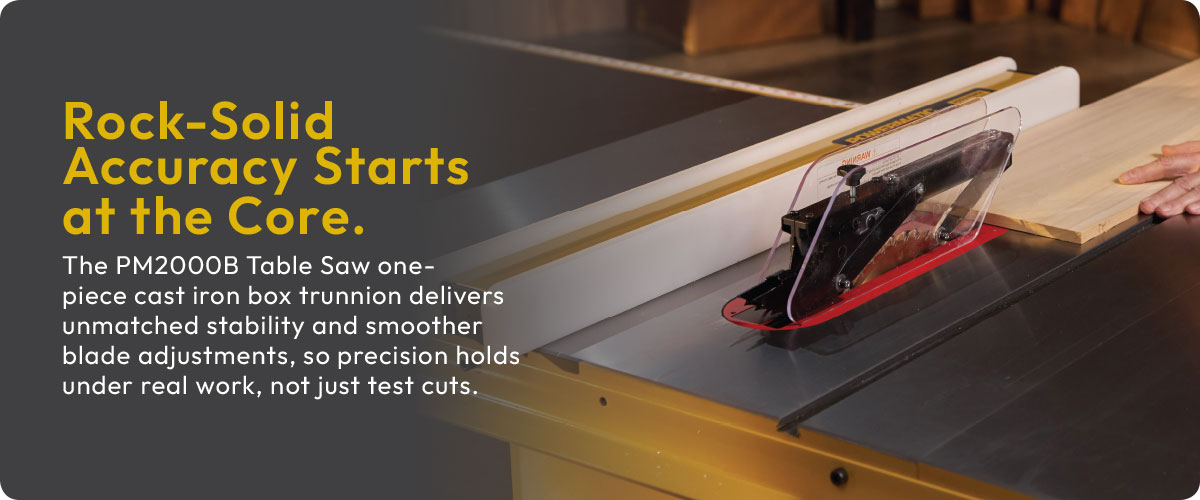

The integrated retractable hydraulic caster system mobilizes your table saw much higher than the previous model to assist when moving over thresholds. A wide-stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-v drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.
Features
- 3 HP motor delivers dependable cutting power for professional shop applications
- Single-phase electrical design supports standard 230V shop power
- 10-inch blade capacity handles a wide range of cutting tasks
- 50-inch rip capacity accommodates full-size panels and wide materials
- AccuFence system maintains accurate fence positioning during repeat cuts
- Integrated blade lift allows for smooth, precise blade height adjustment
Specifications
- SKUPM9-PM23150RK
- Blade Diameter10 in.
- CoatingNone
- Dust Port Outside Diameter (in.)4 in.
- Gross Weight723.5
- Input Power230V Single Phase
- Miter Gauge TypeT-Slot with Stops
- Model NumberPM2000B
- Motor HP3
- Net weight646.7
- Prewired Voltage230
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Style TypeCabinet
- Table Height35
- Table TypeCast Iron
- Warranty5 Year
