Product Details

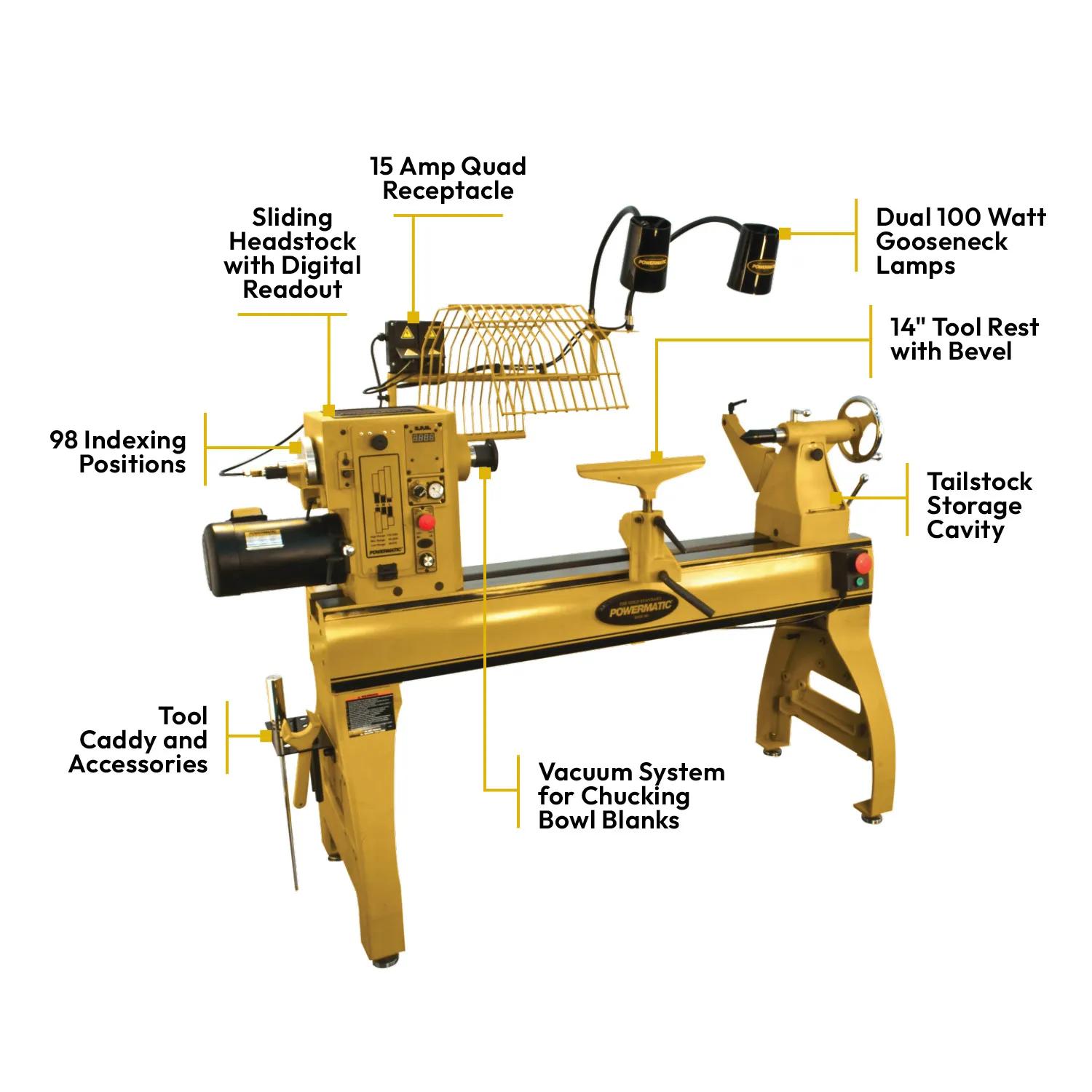

The Powermatic 4224B EVS lathe is engineered for large-scale turning and maximum stability. With a 24-inch swing over the bed and 42 inches between centers, this lathe is powered by a robust 3 HP motor operating on 230V single-phase power. Weighing over 900 pounds, the 4224B provides exceptional mass to reduce vibration when handling large or out-of-balance workpieces. Electronic variable speed allows precise control across a wide operating range, while the heavy-duty construction supports demanding shaping and hollowing applications. Designed to expand creative capacity, the 4224B is Powermatic’s most capable lathe for professional and high-output turning environments.
Features
- 3 HP motor operating on 230V single-phase power delivers the torque required for large-scale turning and demanding shaping operations
- 24-inch swing over the bed and 42 inches between centers support oversized bowls, platters, and long spindle workpieces
- Lathe mass exceeding 900 lbs helps reduce vibration when turning large or out-of-balance material for improved control

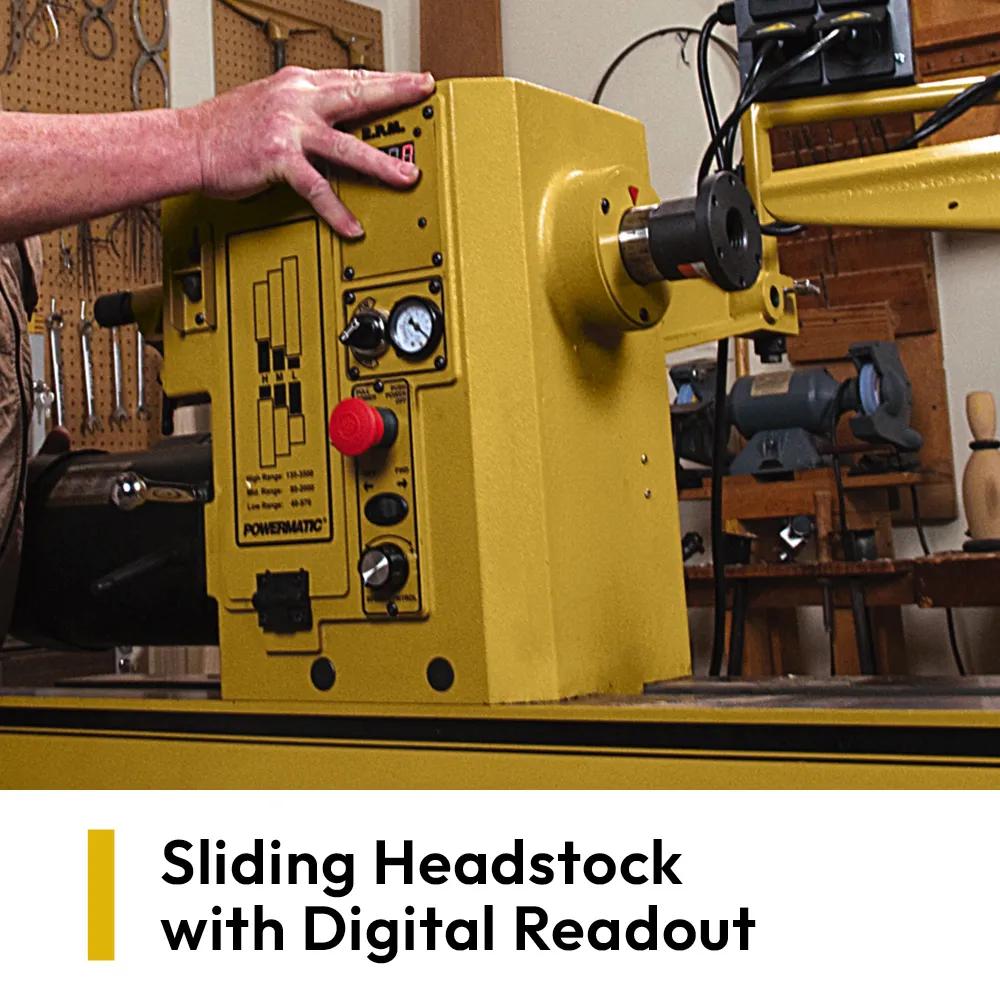

- Sliding headstock with electronic variable speed allows precise speed control and improved access when working on large diameters
- Magnetic-backed movable control box allows repositioning controls closer to the work area for better visibility and convenience

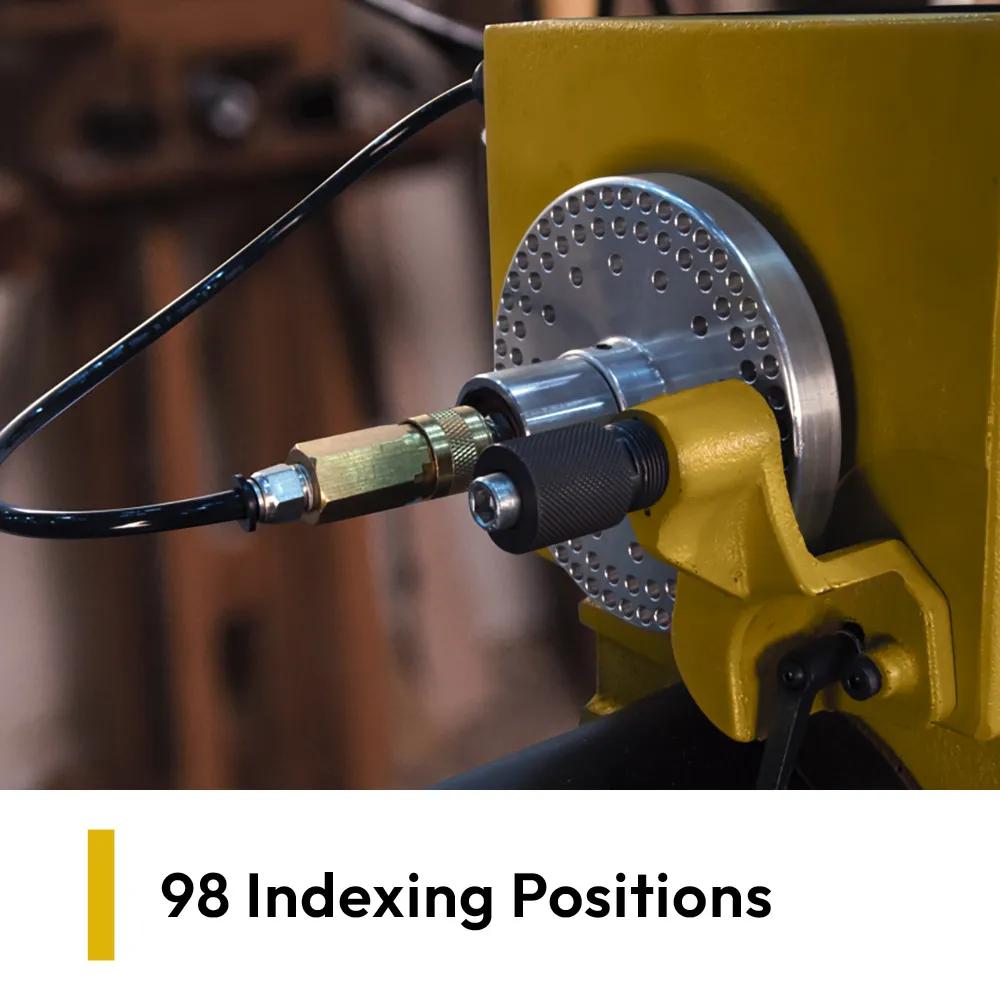

- Built-in spindle lock and indexing on the headstock support repeatable layout work such as fluting or evenly spaced patterns

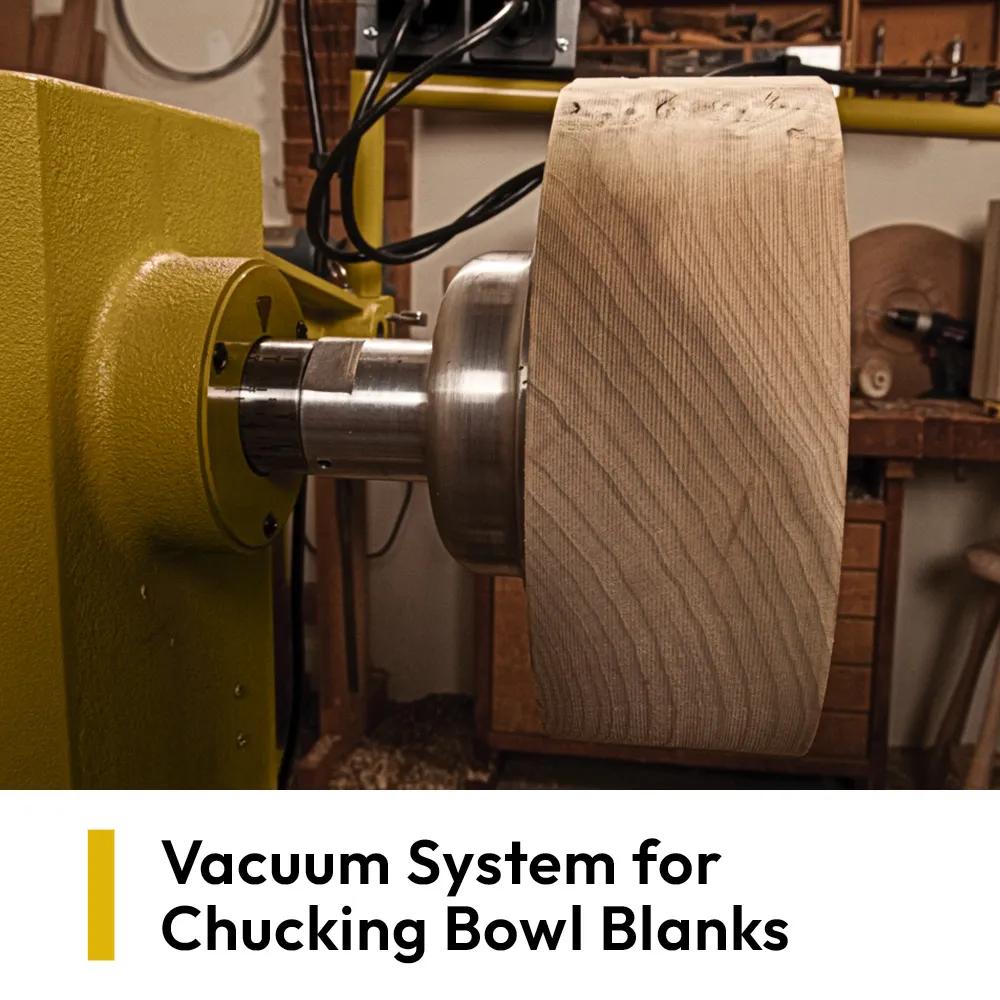

- Vacuum chucking system provides a quick method for securing bowl blanks during finishing operations
- Brass-tipped knockout bar applies removal force without damaging drive centers or spindle components
- Integrated air nozzle with quick-connect fitting allows fast clearing of dust and chips during turning

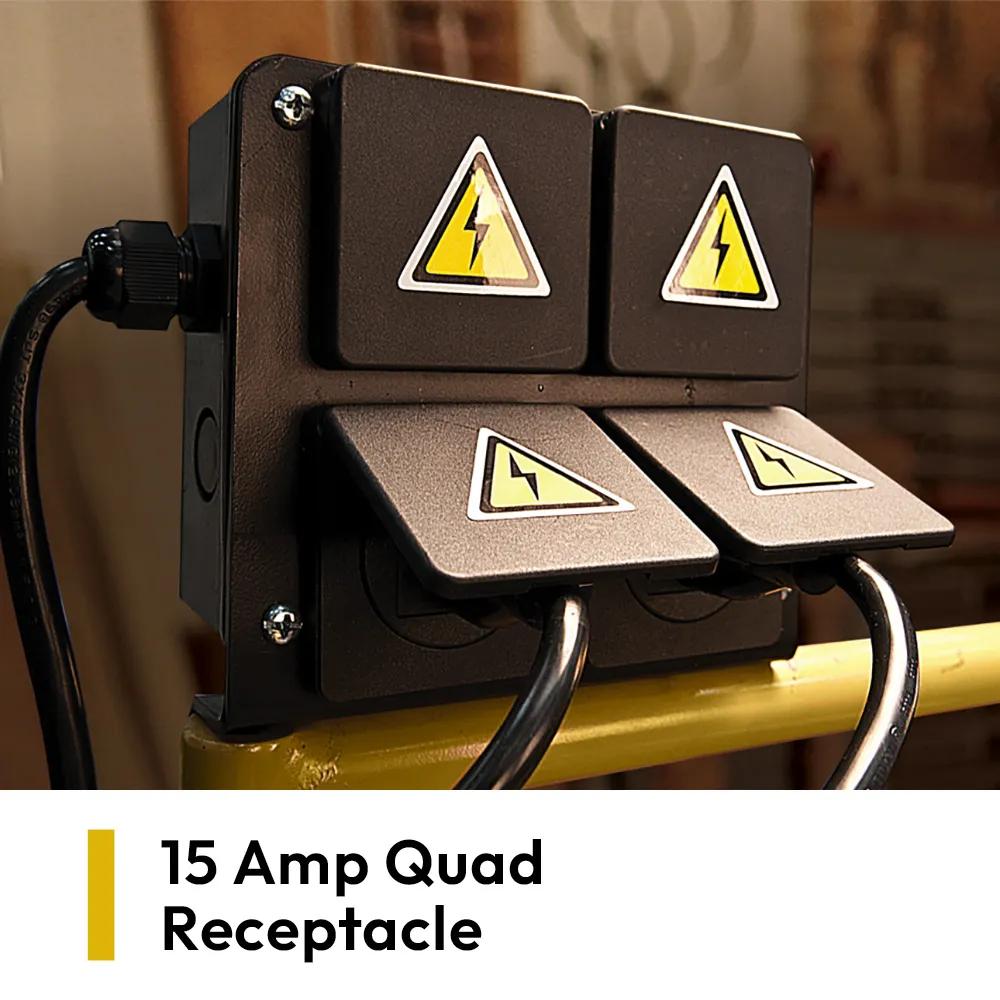

- 15-amp quad receptacle offers convenient power access for lamps or accessories near the turning area
Specifications
- SKUPM9-1794224K
- Distance Between Centers42 in.
- Gross Weight960
- Headstock MovementSliding
- Input Power120V
- Model Number4224B
- Motor HP3
- Net weight948
- Number of Indexing Positions98
- Old Material Number1794224K
- Prewired Voltage220
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT2
- Spindle Bore5/8 in.
- Spindle TaperMT2
- Style TypeFloor Standing
- Swing Over Bed24 in.
- Warranty5 Year
Support
Service & Support
Assistance for a smooth shopping experience
Operation Manuals
Learn the machine's application and limitations
Product Registration
Register your product to get fully warranty benefits
Warranty
Learn more about what is covered by our warranties
Reviews
Very nice lathe
01/24/2026 at 12:00 AMBought this lathe a month ago to replace another "higher quality" lathe. Very impressed. The 3 hp motor is more than adequate. I had timevto build a few (49 total) blanks ranging in size from 6 inch to 18 inch while waiting for delivery (long story, first order got lost). Blanks were made with vario...
- Elmer Fuddmore
