8-Inch Parallelogram Jointer, Helical, 2 HP, 230V 1Ph (PJ-882HH)

Stock Number: PM9-1610082

0 Reviews

No reviews yet.

  • 54 four-sided carbide inserts
  • Extra long 82" precision-ground cast iron bed
  • Patented handwheel-operated worm gear system
  • High-mount switch for operator convenience
$5,202.00

Financing Starting at $101 per month -

Item Quantity: 1
Contact a Specialist - 855-657-4653

Product Details

The Powermatic PJ-882HH 8-inch parallelogram jointer with a helical cutterhead delivers refined surface quality and reduced noise in a compact professional machine. A 2 HP motor drives the helical cutterhead equipped with 54 indexable carbide inserts that shear material cleanly and require minimal maintenance. The parallelogram table system allows fast depth-of-cut adjustments while keeping the tables aligned with the cutterhead. An extra-long 82-inch bed supports larger workpieces, and the single-handwheel fence adjustment includes preset stops for fast, repeatable setups.

Features

  • Helical cutterhead with 54 four-sided carbide inserts delivers quieter cutting, reduced tear-out, and longer edge life
  • 2 HP single-phase motor provides consistent power for jointing hardwoods and wider stock
  • Extra-long 82-inch precision-ground cast iron tables improve material support and jointing accuracy

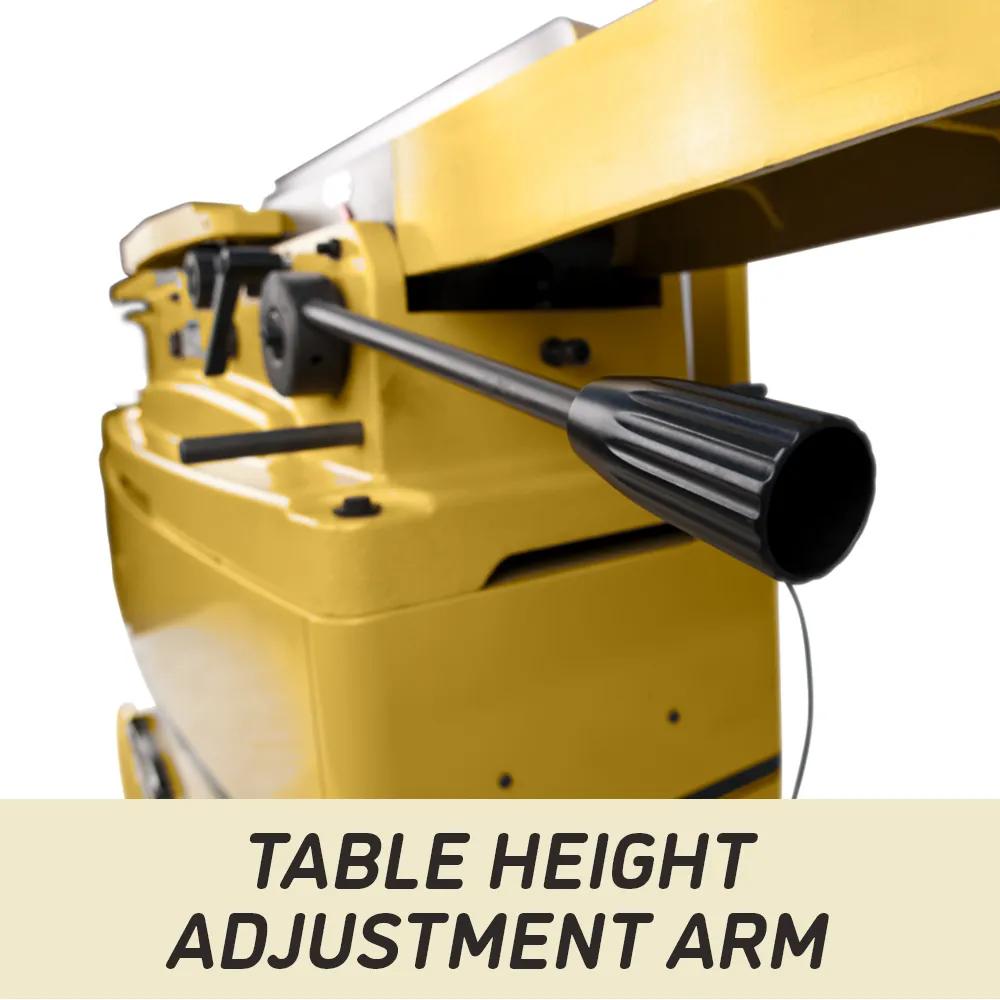

  • Parallelogram table design keeps tables close to the cutterhead for improved finish quality and fast depth changes
  • Patented worm-gear handwheel fence adjustment allows smooth, precise fence tilting with minimal effort

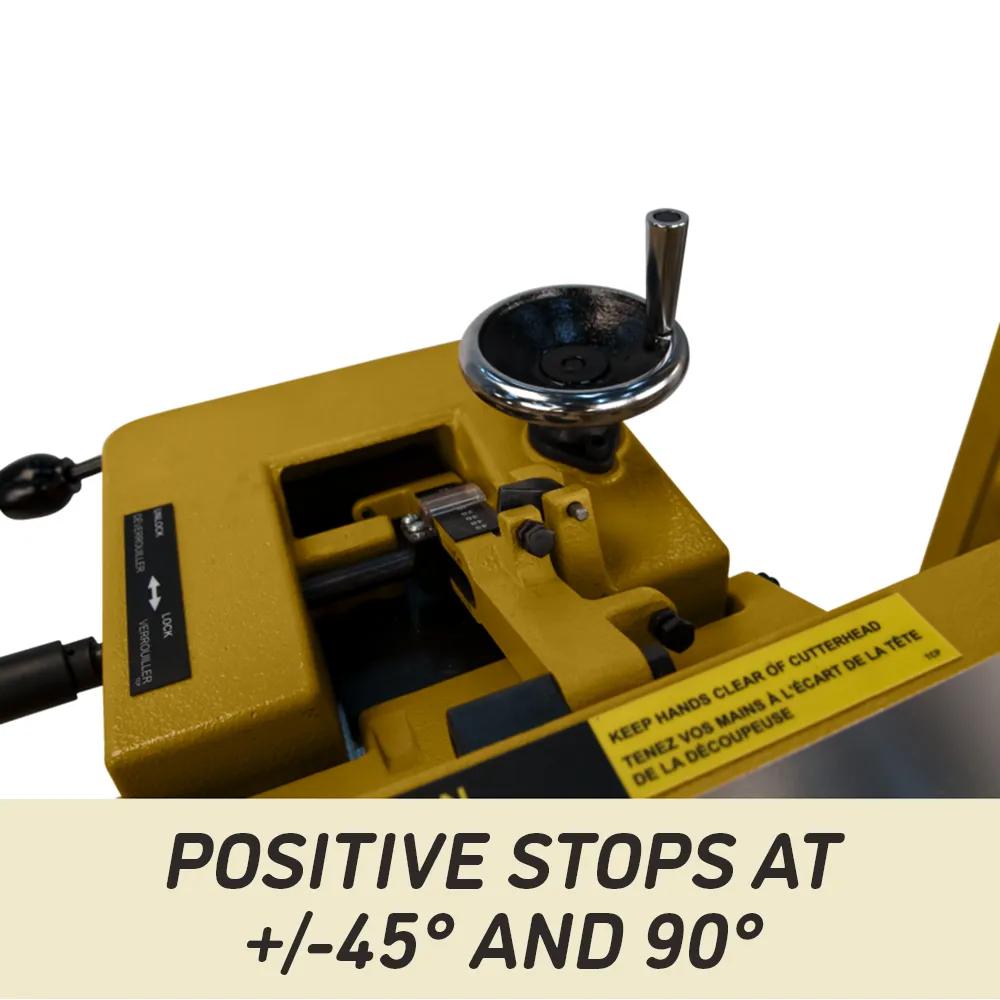

  • Center-mounted cast iron fence includes positive stops for repeatable 45° and 90° jointing setups

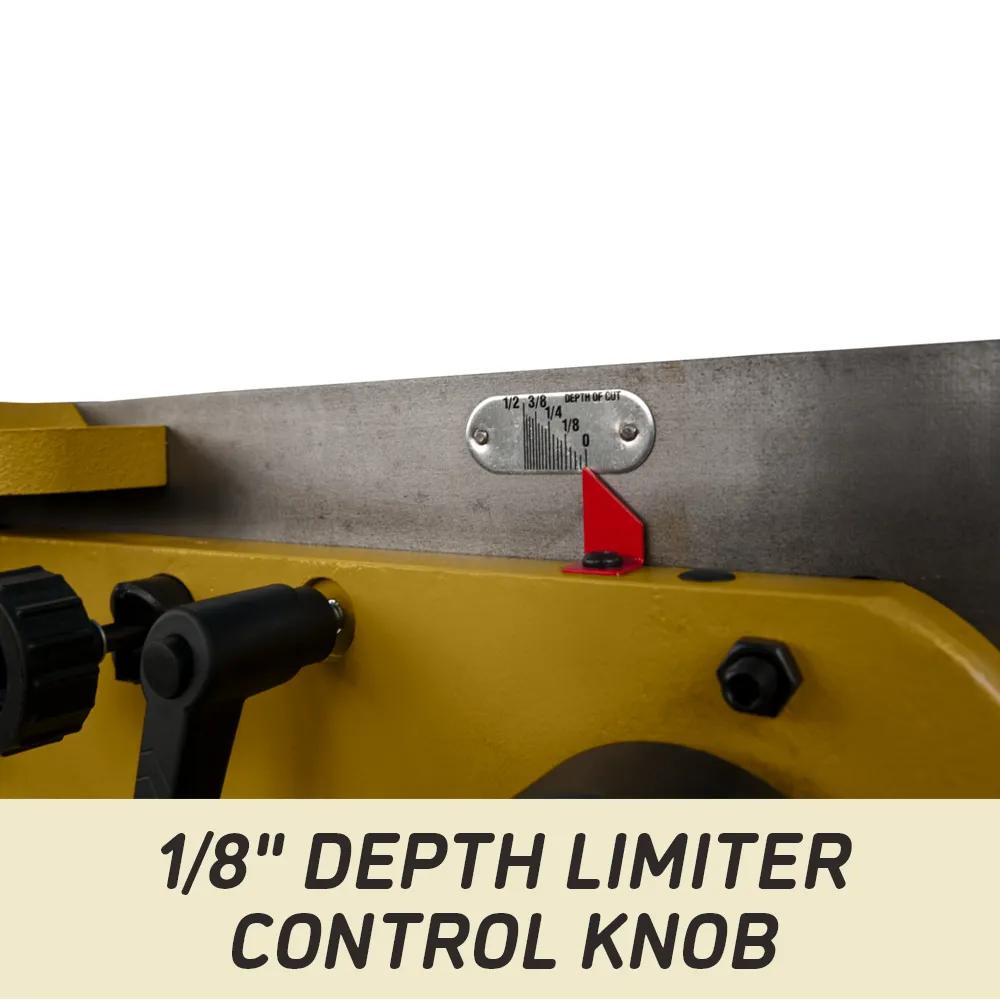

  • 1/8-inch depth limiter control knob helps control pass depth for safer, more consistent results

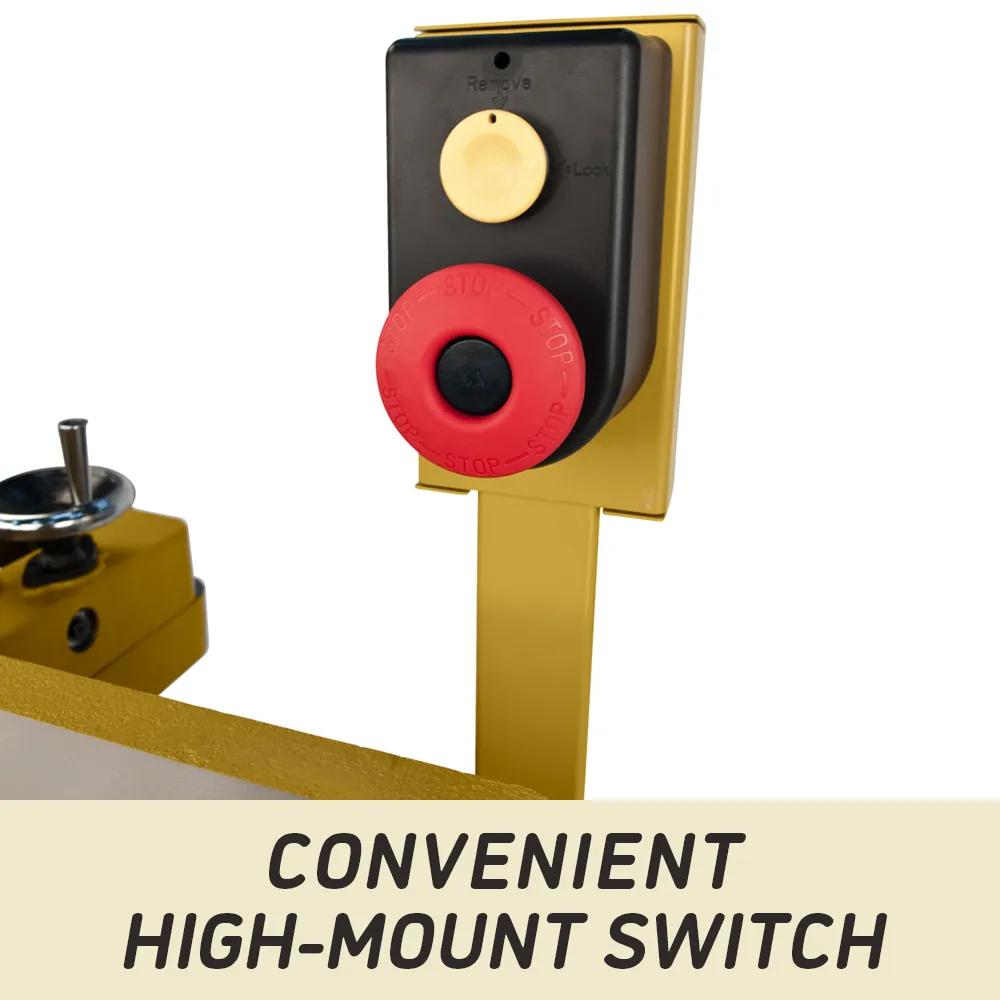

  • High-mounted switch and control box improve visibility and operator access during operation

Specifications

  • SKU
    PM9-1610082
  • Coating
    None
  • Cutterhead Diameter
    3-1/16 in.
  • Cutterhead Speed (RPM)
    7000
  • Cutting Capacity Width
    8 in.
  • Dust Port Outside Diameter (in.)
    4 in.
  • Fence Size
    38 in. x 4-3/4 in.
  • Gross Weight
    744
  • Input Power
    230V Single Phase
  • Model Number
    PJ882HH
  • Motor HP
    2
  • Net weight
    610
  • Number of Knives
    54 four-sided inserts
  • Old Material Number
    1610082
  • Prewired Voltage
    230
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Type of Cutterhead
    Helical Head
  • Warranty
    5 Year
