Oscillating Spindle Sander, 1 HP, 115 1Ph (Model OSS10)

Stock Number: PM1-266

  • Variable speed spindle for material control
  • Large cast iron table ensures accuracy
  • Oscillation keeps abrasives cleaner
  • Tilting spindle expands sanding angles
$3,849.00

Financing Starting at $75 per month -

Item Quantity: 1
Contact a Specialist - 855-657-4653

Product Details

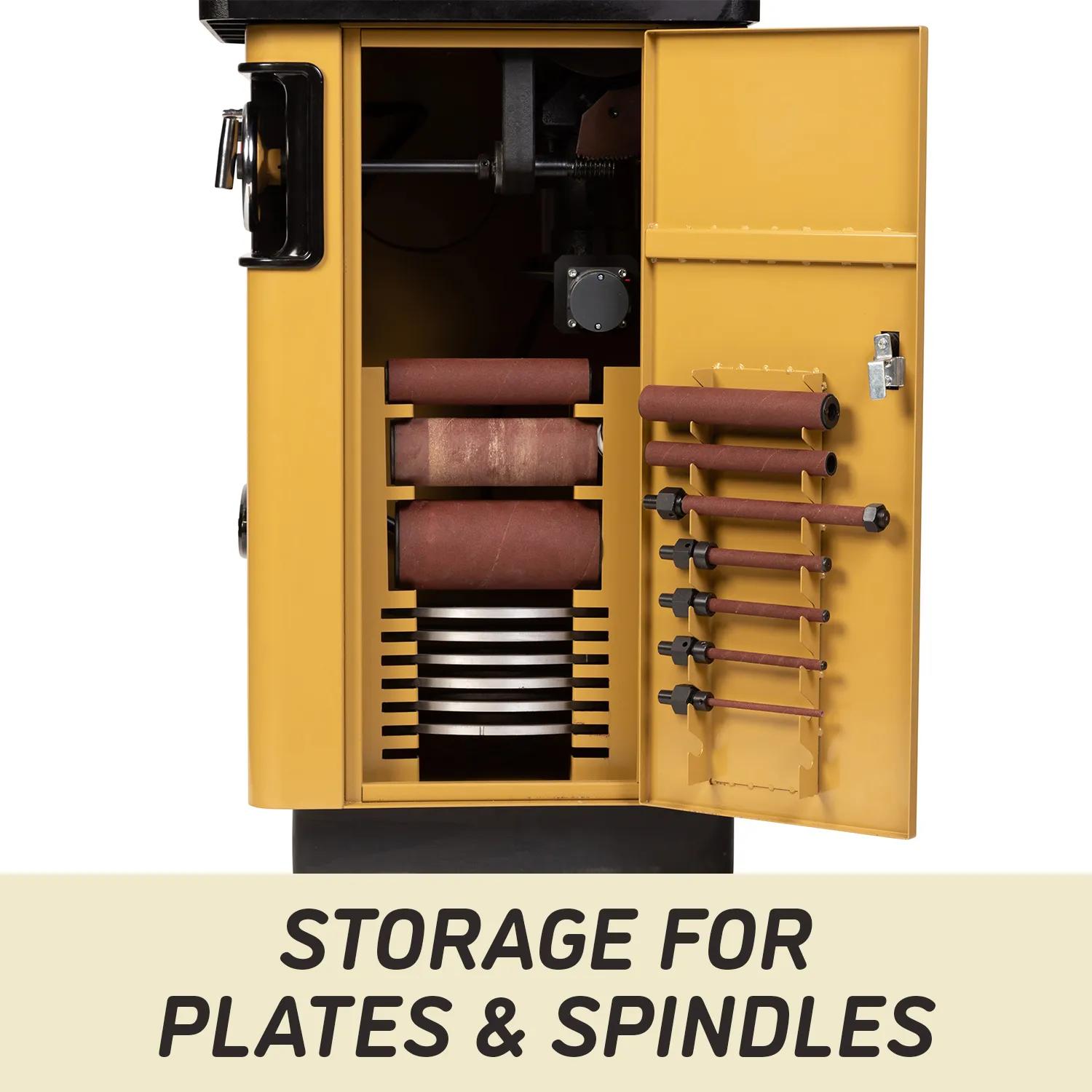

The Powermatic OSS10 Oscillating Spindle Sander is engineered for precise spindle sanding, smooth edge finishing, and long-term reliability in professional and serious woodworking shops. Designed with control, accuracy, and ease of use in mind, it supports a wide range of sanding applications from intricate curves to larger edge profiles. A large 24-1/2" × 24-1/2" cast iron stay-flat table provides stable, accurate support during sanding operations. The oscillating spindle mechanism, operating at up to 60 oscillations per minute with a 1.5" stroke, helps keep abrasives cleaner, reduces heat buildup, and extends spindle life. The variable-speed spindle (600–1,800 RPM) allows operators to match sanding speed to material type and finish requirements. Spindle tilt from 0° to 45° expands sanding versatility for angled and beveled work. A clear digital readout displays speed and angle settings for precise, repeatable adjustments. Supporting spindles from 1/4" to 4" diameter, the OSS10 accommodates a wide range of sanding sleeves and inserts. Operator controls include an intuitive paddle switch with safety key, while integrated dust collection and a steel cabinet with spindle storage help keep the workspace organized. Like all Powermatic machines, the OSS10 is backed by a 5-year warranty, reinforcing confidence in its durability and long-term performance.

Features

  • Large cast iron stay-flat table (24-1/2" × 24-1/2") provides stable, accurate support for precision sanding.
  • Oscillating spindle action (up to 60 OPM, 1.5" stroke) keeps abrasives cleaner and extends spindle life.

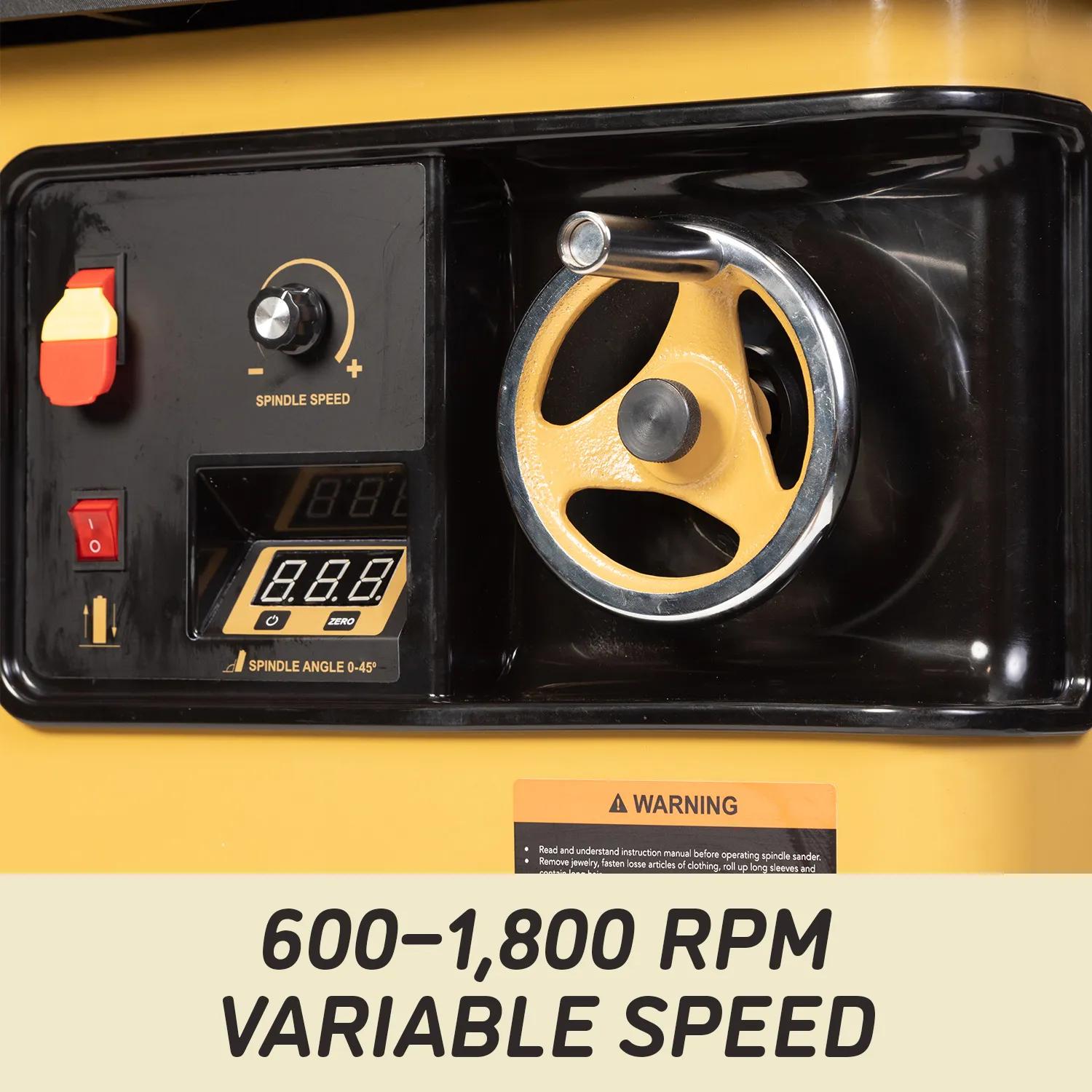

  • Variable spindle speeds (600–1,800 RPM) allow control across materials and sanding applications.

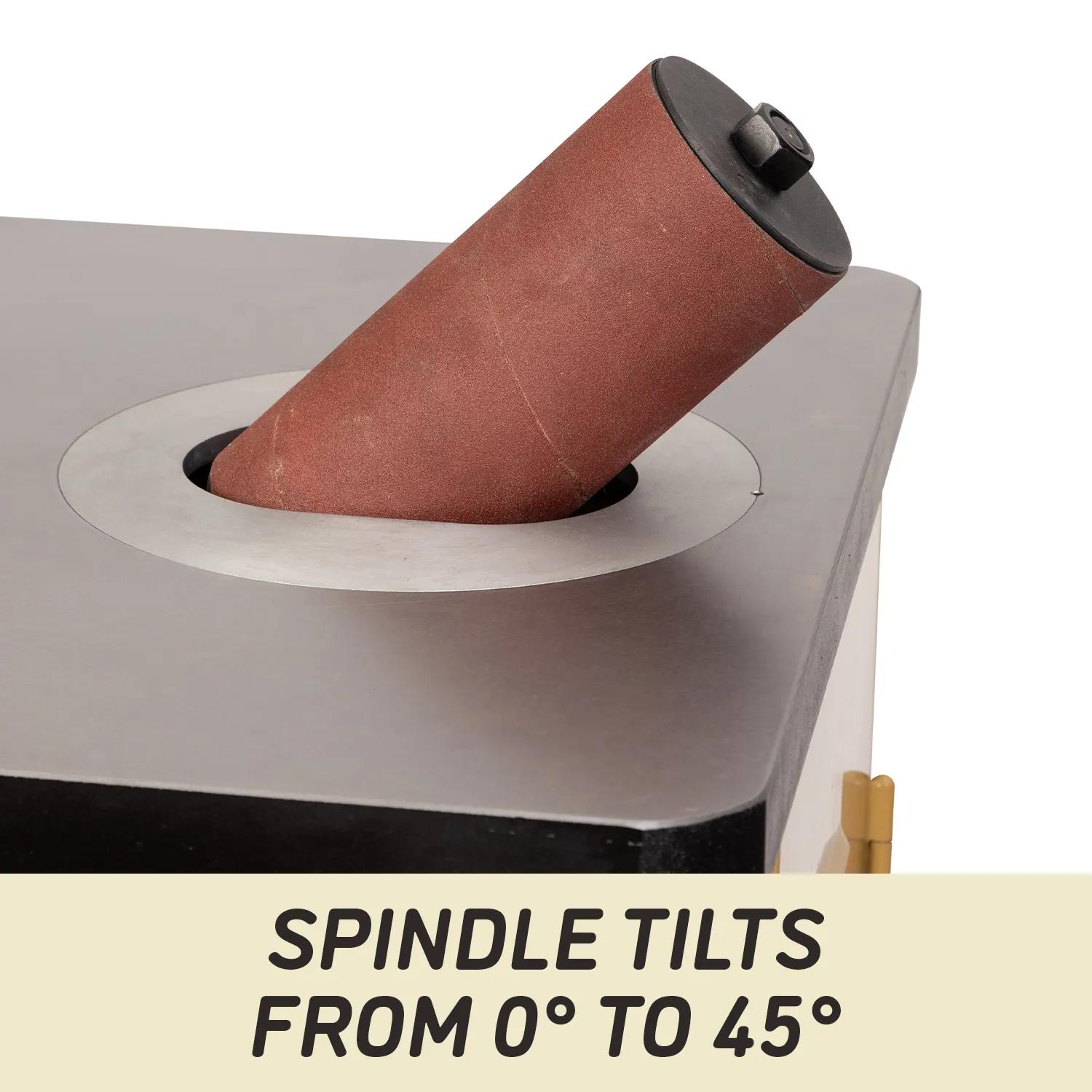

  • 0°–45° tilting spindle enables accurate angled and beveled sanding.

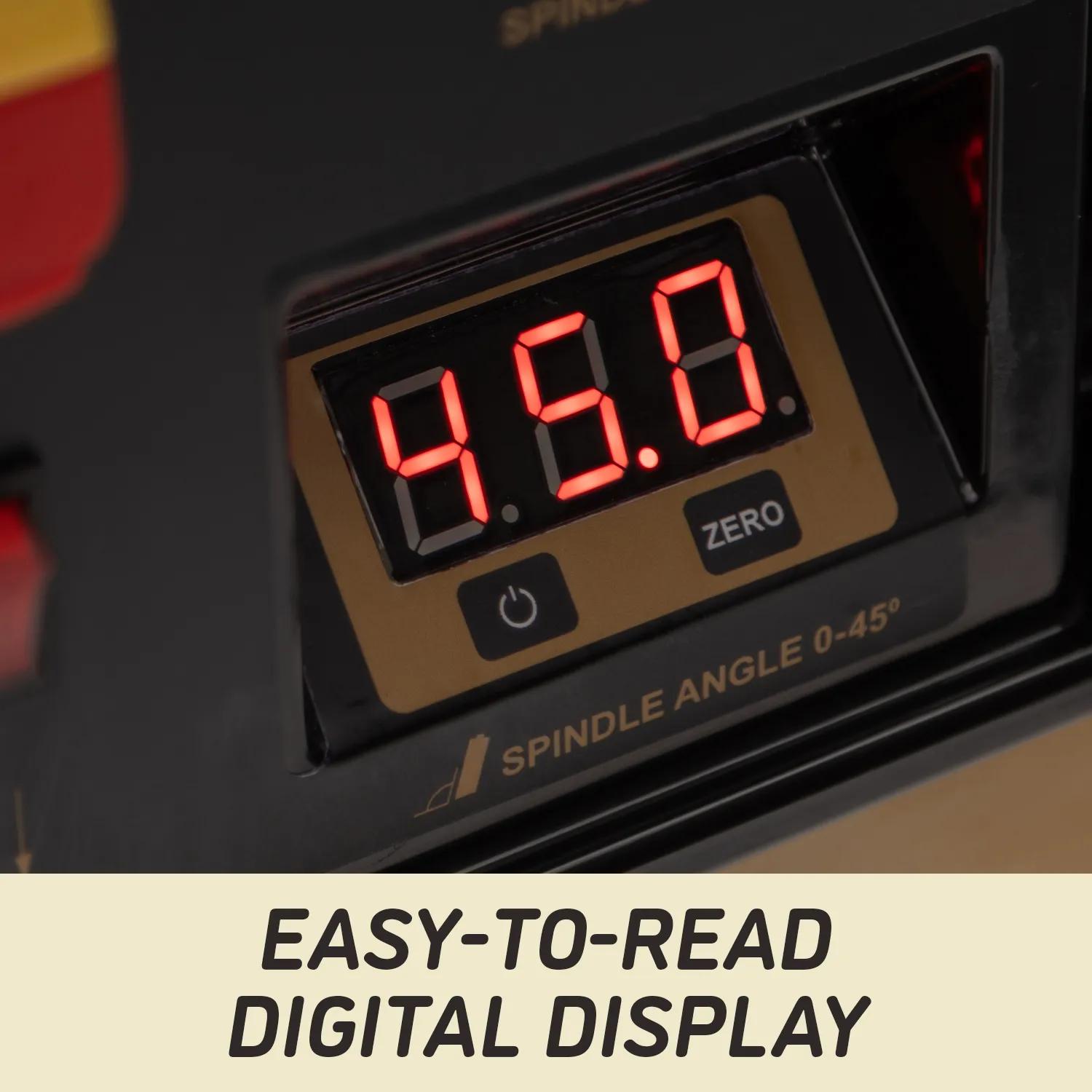

  • Digital readout displays speed and angle for precise, repeatable adjustments.

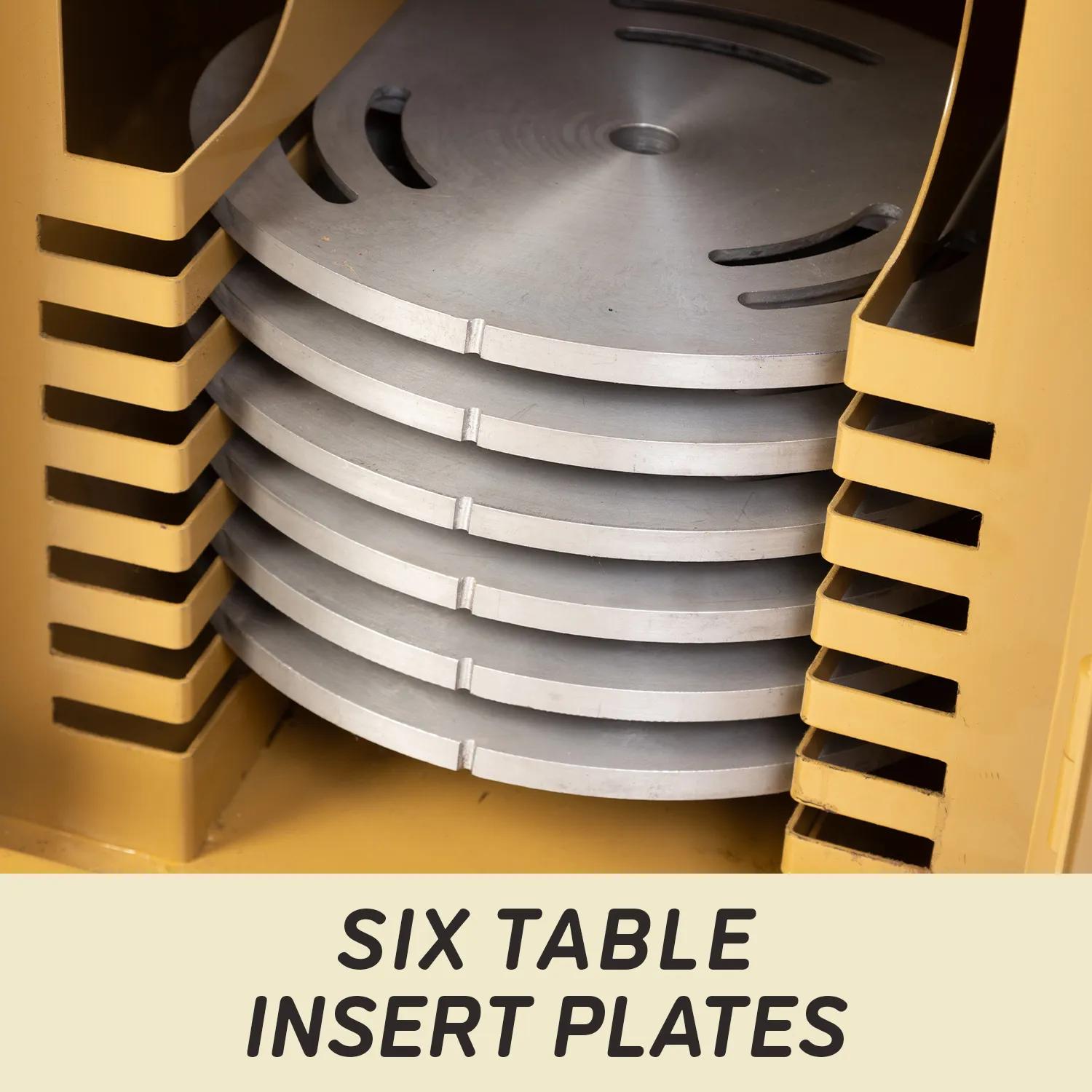

  • Supports spindle sizes from 1/4" to 4" for broad sanding versatility.
  • Paddle switch with safety key provides intuitive control and added operator safety.

Specifications

  • SKU
    PM1-266
  • Dust Port Outside Diameter (in.)
    4 in.
  • Gross Weight
    396
  • Input Power
    115V
  • Model Number
    OSS10
  • Motor HP
    1
  • Net weight
    335
  • Oscillations Per Minute
    60
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Spindle Speed RPM
    600 to 1800
  • Warranty
    5 Year
