5-HP Spindle Shaper, 30" x 40" Table, 230/460V (PM2700)

Stock Number: PM9-1280102C

0 Reviews

No reviews yet.

  • 5 HP industrial-duty motor
  • 1-1/4" spindle capacity
  • 30" x 40" Precision-ground cast iron work surface
  • Pre-wired for 230V
$5,719.00
Call 855-657-4653 for availability

Financing Starting at $112 per month -

Powermatic 5 Year Warranty

Product Details

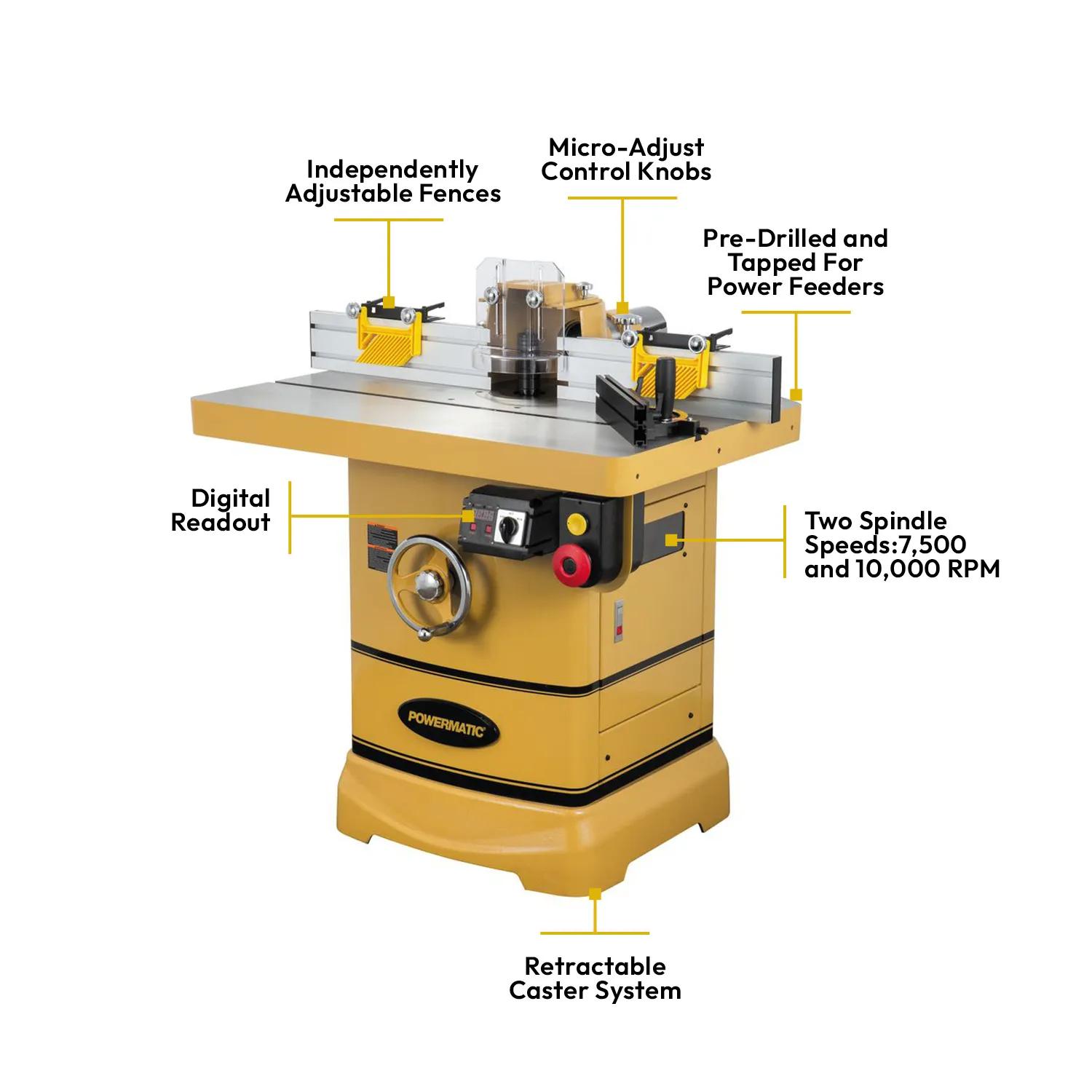

5-HP Spindle Shaper, 30" x 40" Table, 230/460V (PM2700)

The Powermatic PM2700 Shaper is designed for professional woodworking shops and industrial production environments that require high power, smooth operation, and long-term reliability. Built on the PM2700 platform, this model features a three-phase motor configuration that delivers consistent torque and efficient performance for demanding shaping, profiling, and edge-forming applications.


A precision-ground cast iron table provides excellent stability and vibration control, supporting accurate results during extended production runs. The 5 HP industrial-duty motor is engineered for continuous use in commercial and manufacturing environments where performance consistency is critical. User-focused controls and integrated safety features help maintain efficient workflow while supporting operator confidence on the shop floor.


Designed for use in professional workshops and production facilities across North America, the PM2700 Shaper delivers the durability and precision expected from Powermatic equipment.

Features

  • Three-phase power design supports smooth motor operation and efficient energy use
  • Rigid cast iron table construction helps maintain accuracy during high-output production
  • High-capacity motor handles larger cutters and demanding shaping applications
  • Precision drivetrain components promote consistent spindle performance
  • Stable machine platform improves control during extended run times
  • Well suited for industrial shops, production facilities, and commercial woodworking environments

Specifications

  • SKU
    PM9-1280102C
  • Dust Port Outside Diameter
    4 in.

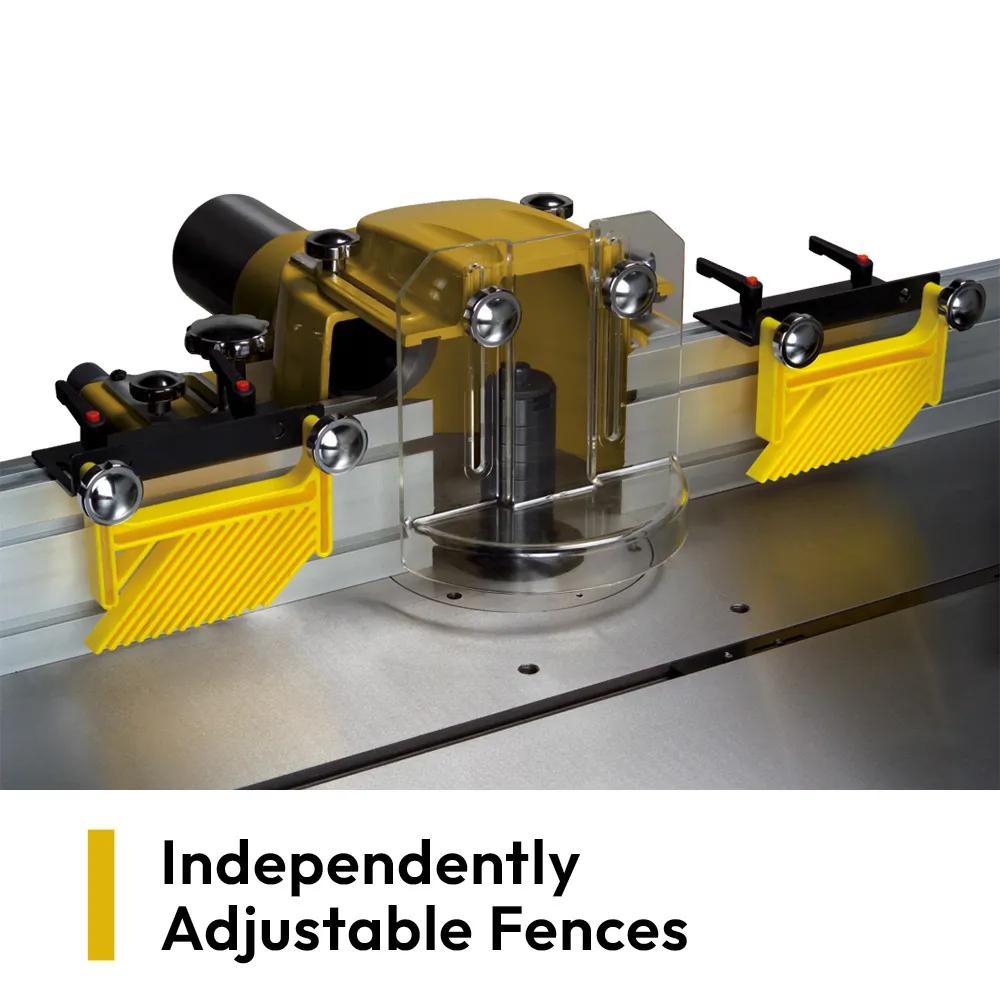

  • Fence Size L X H
    4-7/8 in. x 18-3/4 in. (2)
  • Input Power
    230/460 V 3 Ph
  • Maximum Spindle Diameter
    1-1/4 in. (3/4 & 1-1/4 in. interchangeable spindles)
  • Model Number
    PM2700
  • Motor Amps
    13/6.5 A
  • Motor HP
    5 HP
  • Motor Phase
    Three
  • Net Weight
    664
  • Old Material Number
    1280102C
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Reversible
    Yes
  • SAP Gross Weight
    690

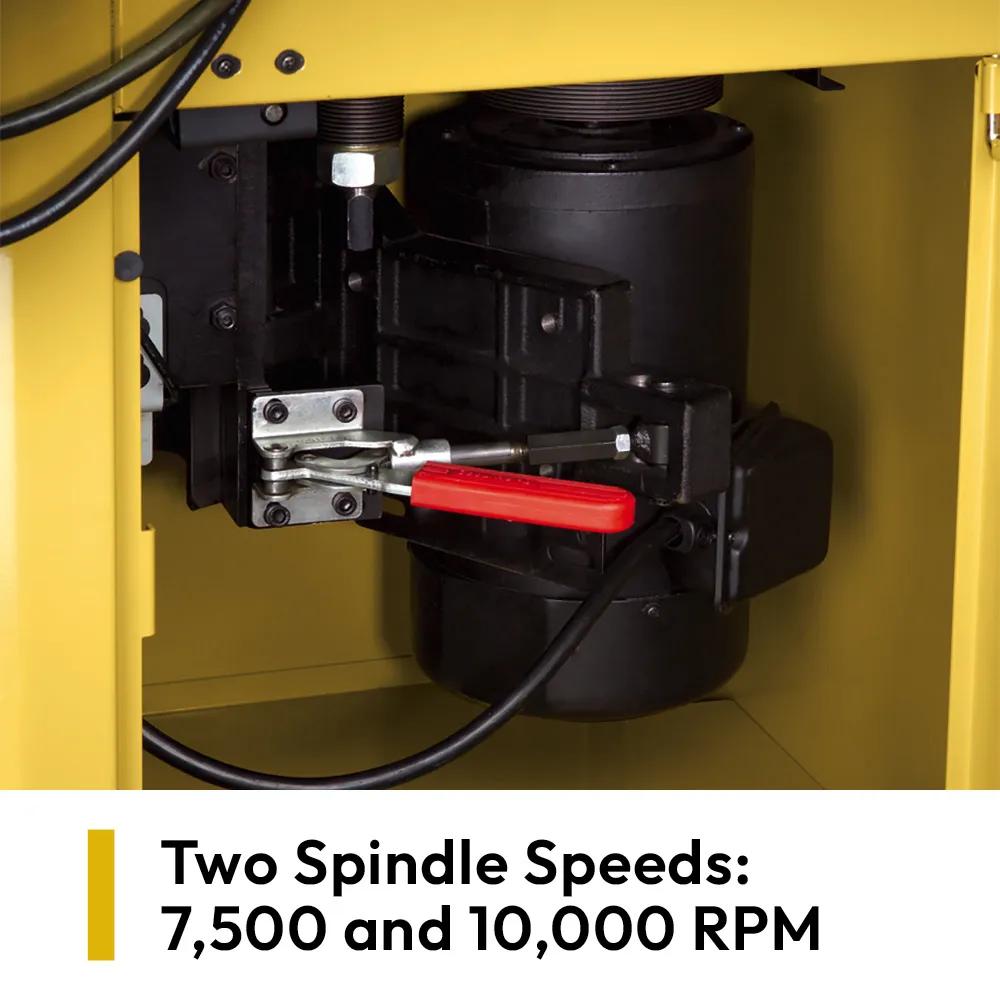

  • Spindle Speed
    7500, 10000 RPM
  • Spindle Travel
    4 in.
  • Style Type
    Floor Standing
  • Table Height
    35-1/2
  • Table Opening Diameter
    7.33
  • UPC
    662755905964
  • Warranty
    5 Year
