20-Inch Floor Drill Press, Variable Speed, 120 1Ph (PM2820EVS)

Stock Number: PM9-1792820

0 Reviews

No reviews yet.

  • Electronic variable speed (150-870, 600-3600 RPM)
  • High-visibility cross hair laser system
  • Two integrated LED lights
  • 20.5" x 15.3" cast iron table w/ removable insert
$3,035.00

Financing Starting at $59 per month -

Item Quantity: 1
Contact a Specialist - 855-657-4653

Product Details

The Powermatic PM2820EVS 20-inch variable-speed floor drill press is designed for high-control drilling with strong torque transfer and flexible work support. A gear-driven powertrain delivers efficient, consistent performance across a broad speed range, making it suitable for varied materials and bit sizes. The cast table adjusts and rotates up to 45 degrees for angled drilling, while the included fence and stop improve repeatability for production work. High-visibility laser alignment and integrated LED lighting reduce guesswork and shadows at the point of cut, and the heavy cast base adds stability during demanding shop operations.

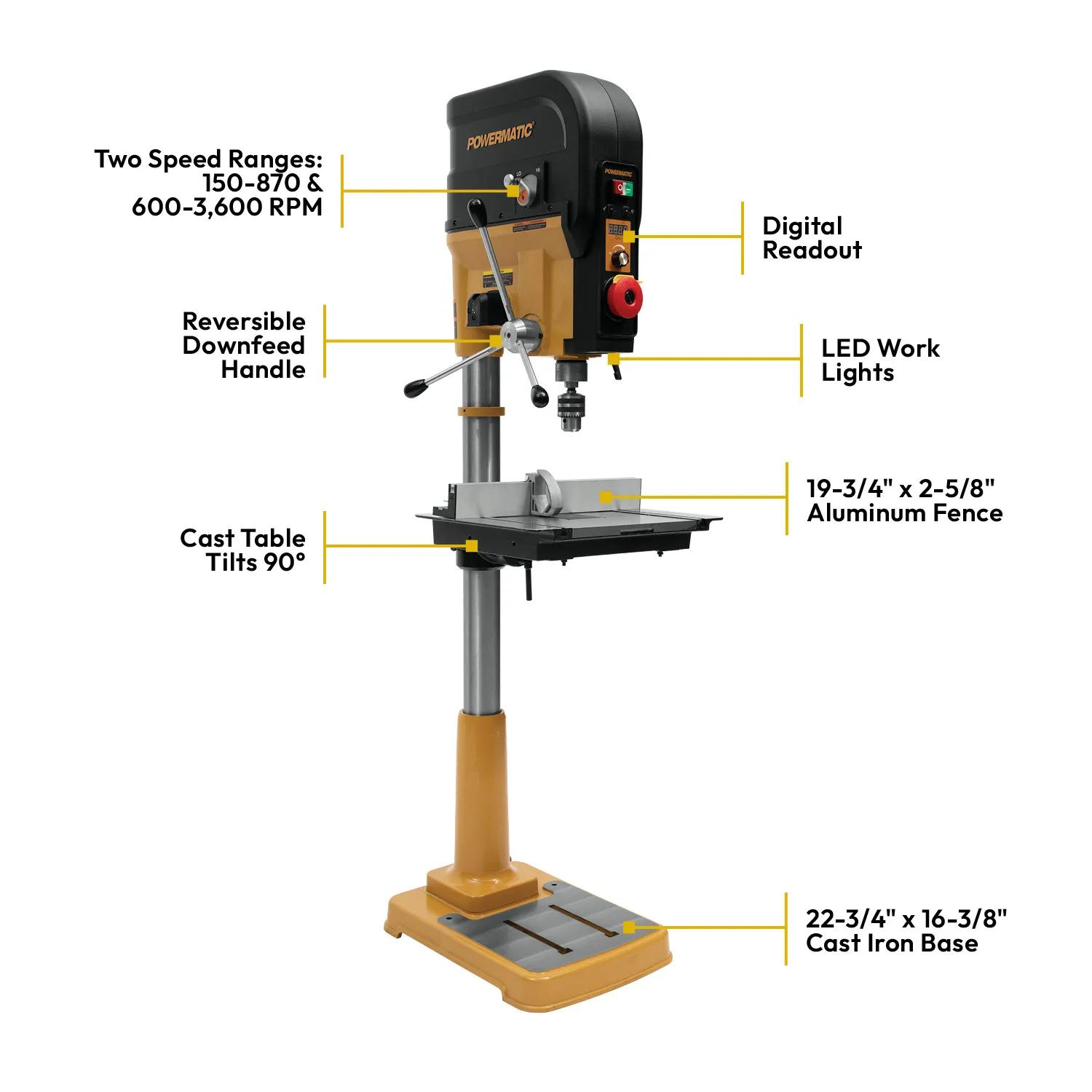

Features

  • Gear-driven powertrain delivers consistent torque across the speed range for controlled drilling in hardwoods and larger bit sizes
  • Wide spindle speed range of 150–870 RPM (low) and 600–3600 RPM (high) supports precision drilling across multiple materials

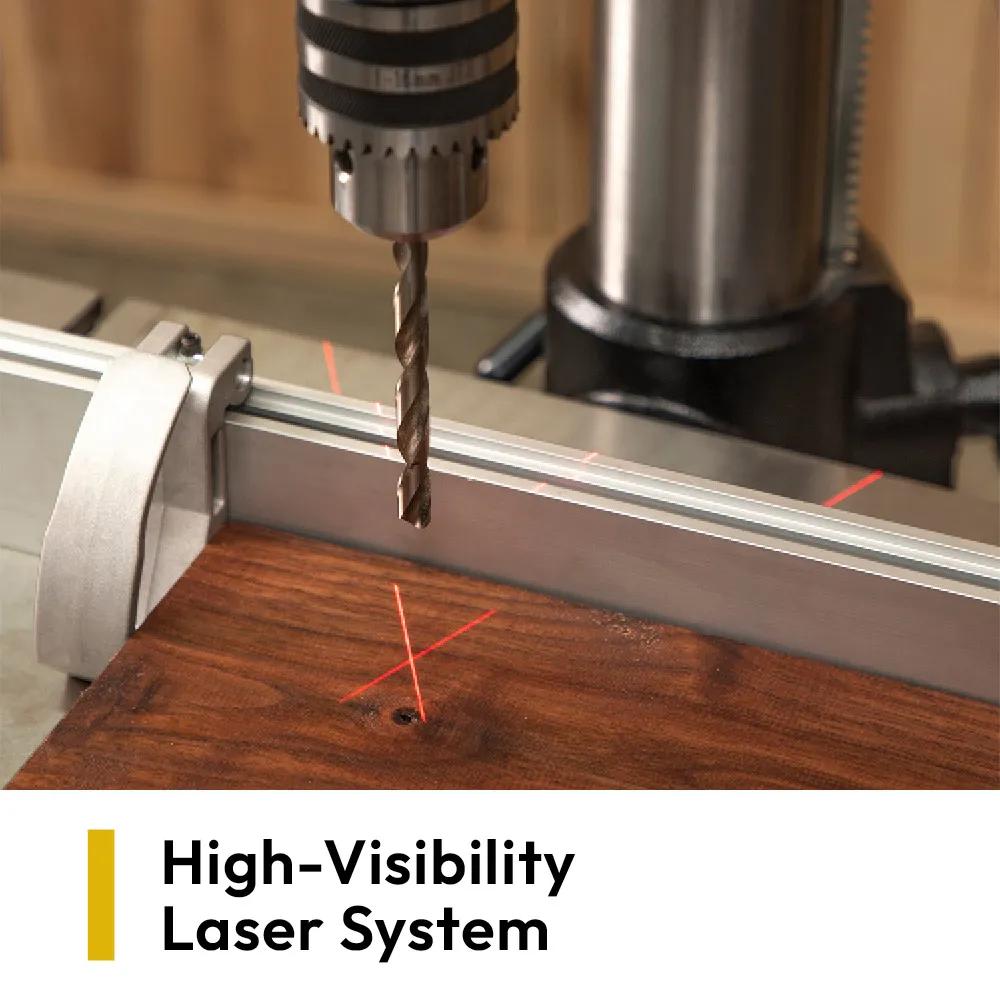

  • High-visibility laser alignment clearly marks the drilling point for accurate hole placement and repeatable results

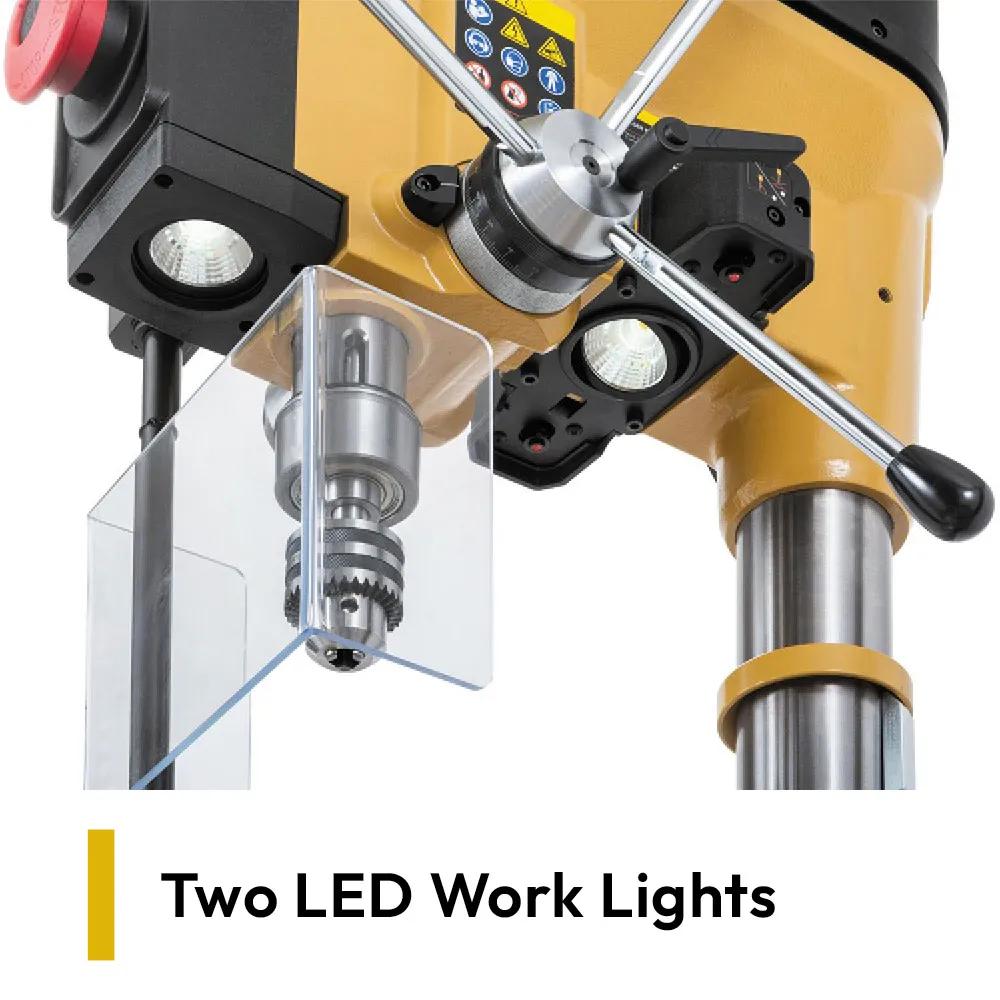

  • Two integrated LED work lights illuminate the work area to reduce shadows and improve visibility at the bit

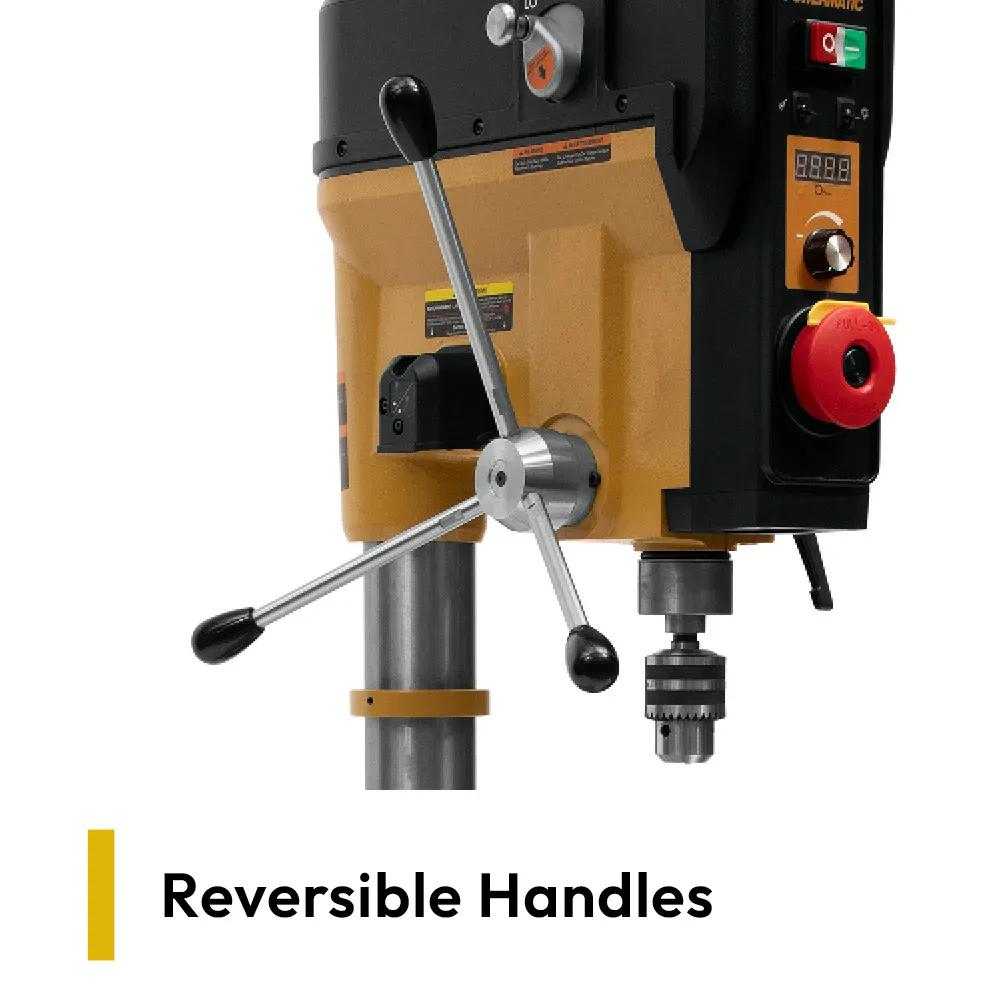

  • Downfeed handles can be reversed for left- or right-hand operation, improving comfort and control during use

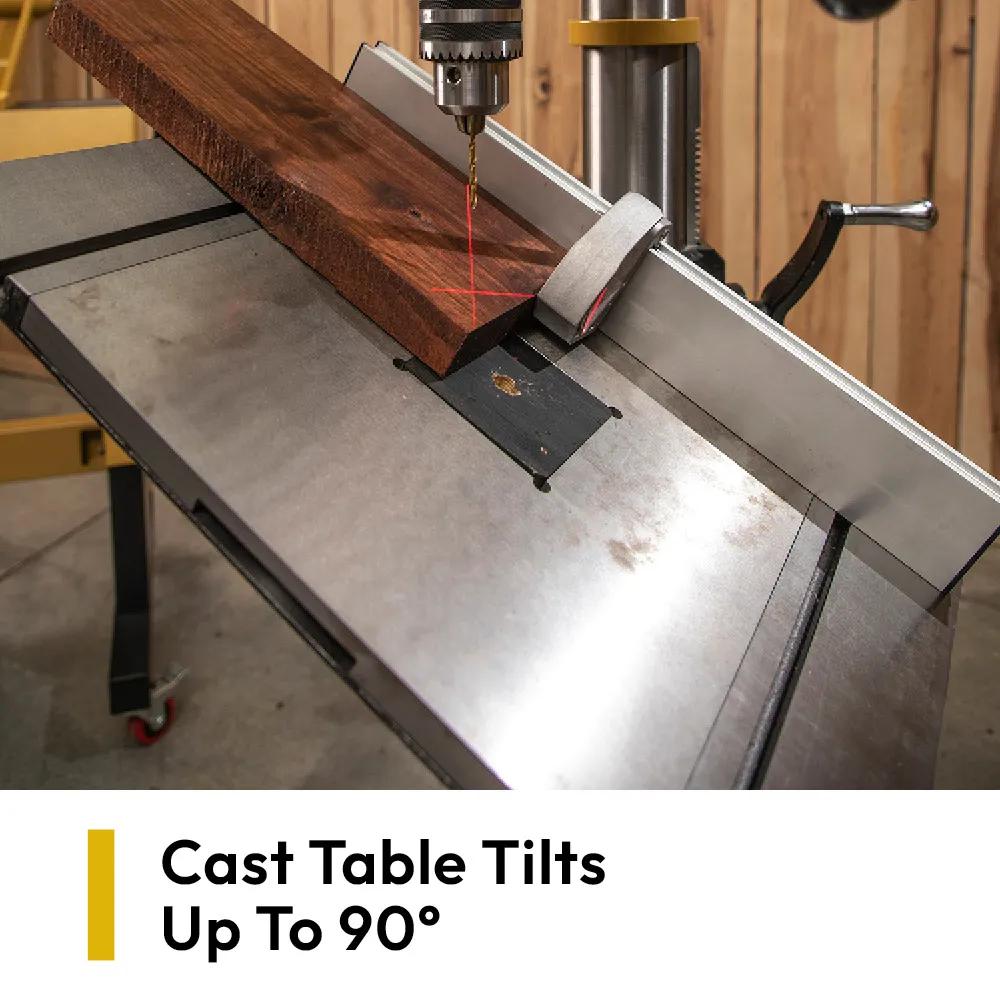

  • Large 20-1/2" x 15-1/3" cast iron table tilts up to 90 degrees for angled drilling and flexible setups

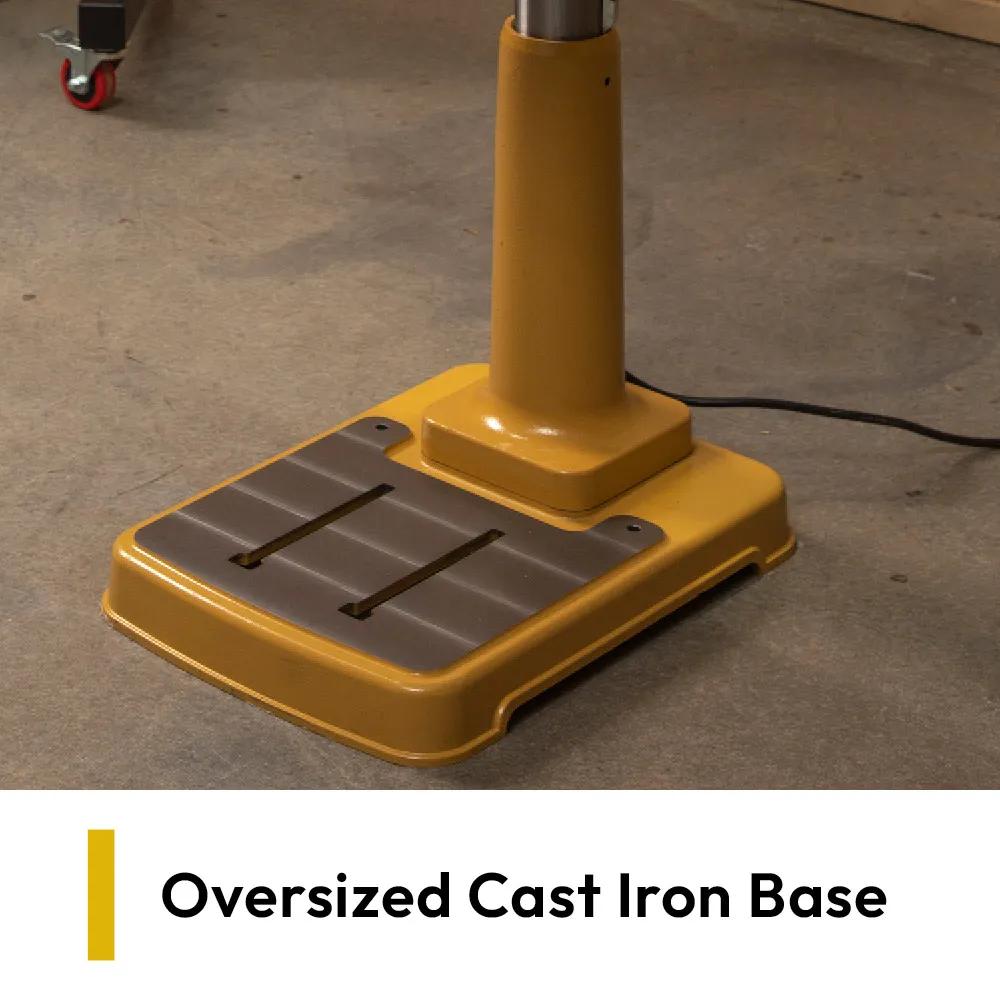

  • Oversized cast iron base provides stability for the full 20-inch swing and helps reduce vibration during operation

Specifications

  • SKU
    PM9-1792820
  • Chuck Distance to Base
    41-1/4 in.
  • Chuck Distance to Table
    19-1/4 in.
  • Chuck Size
    5/8 in.
  • Fence Size
    19-3/4 in. x 2-5/8 in.
  • Gross Weight
    412.6
  • Input Power
    120V
  • Model Number
    PM2820
  • Motor HP
    1
  • Net weight
    336.6
  • Number of Spindle Speeds
    Variable
  • Old Material Number
    1792820
  • Prewired Voltage
    115
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range of Spindle Speeds (RPM)
    600-3600 RPM / 150 - 870 RPM
  • Spindle Taper
    MT2
  • Spindle Travel
    6 in.
  • Style Type
    Floor Standing
  • Swing
    20 in.
  • Warranty
    5 Year
